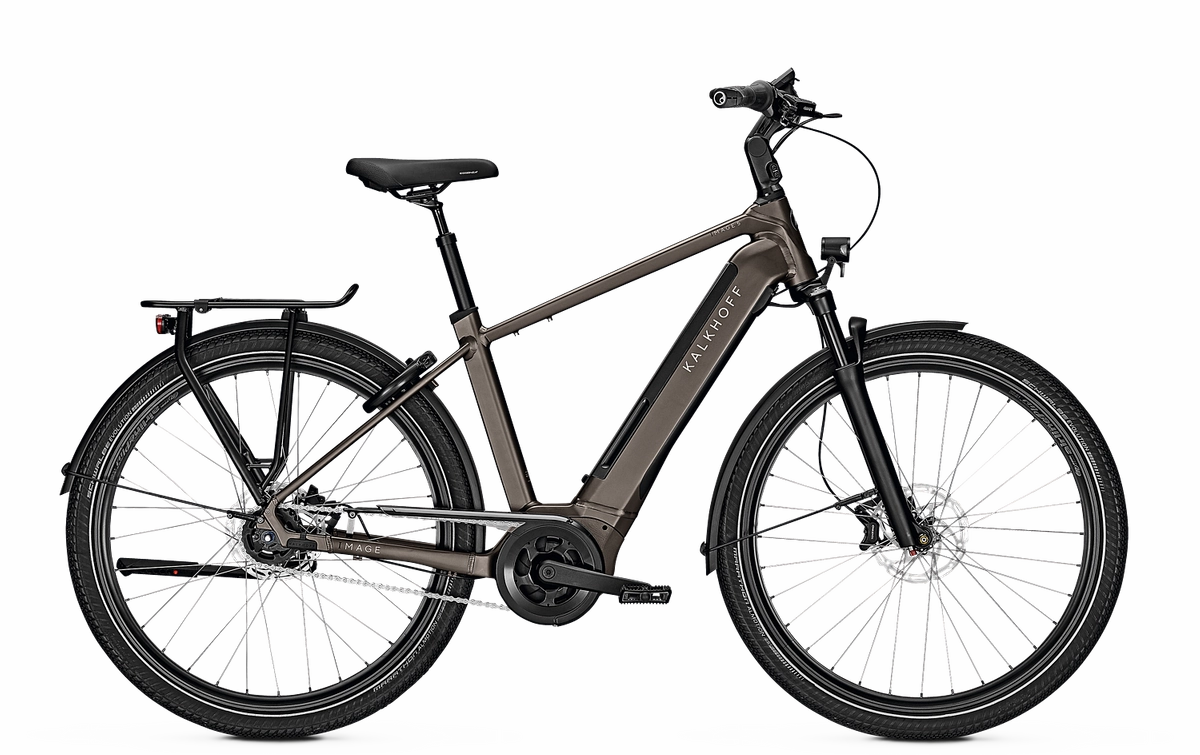

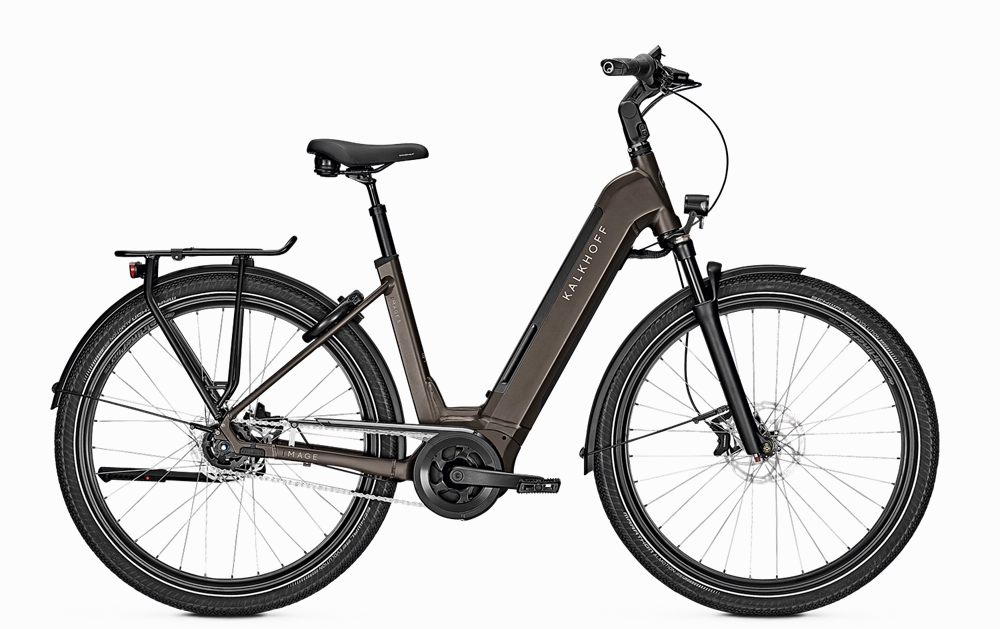

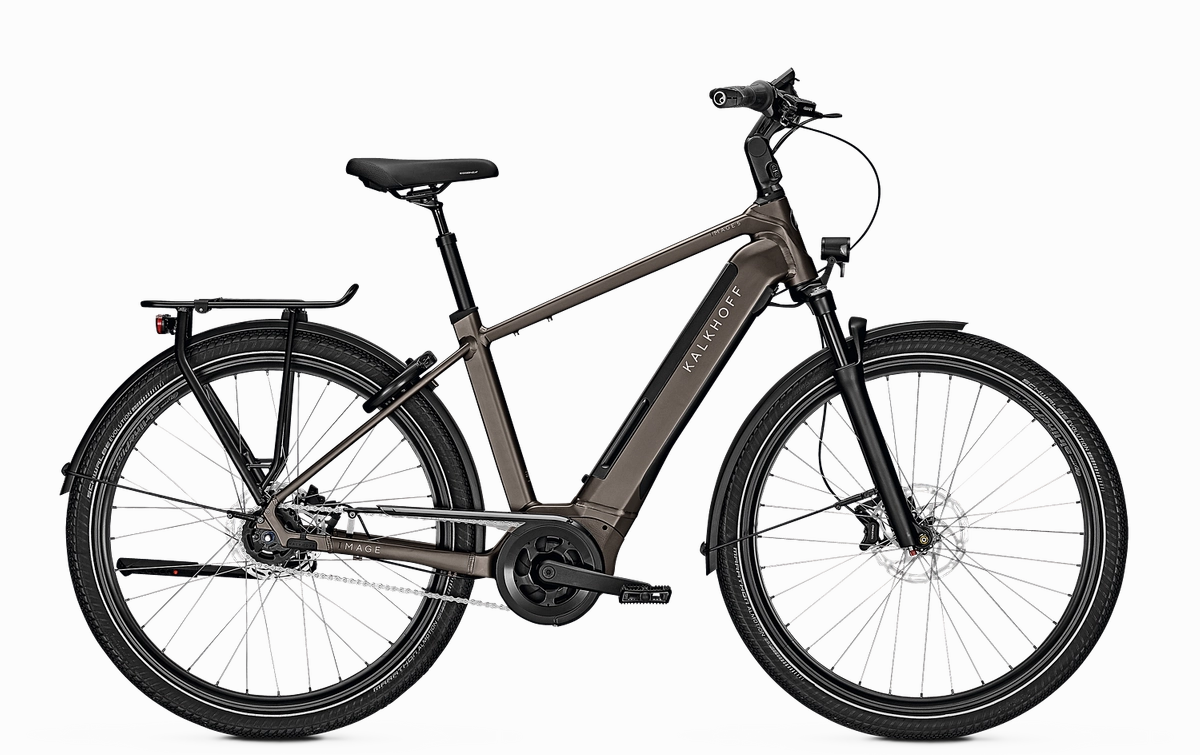

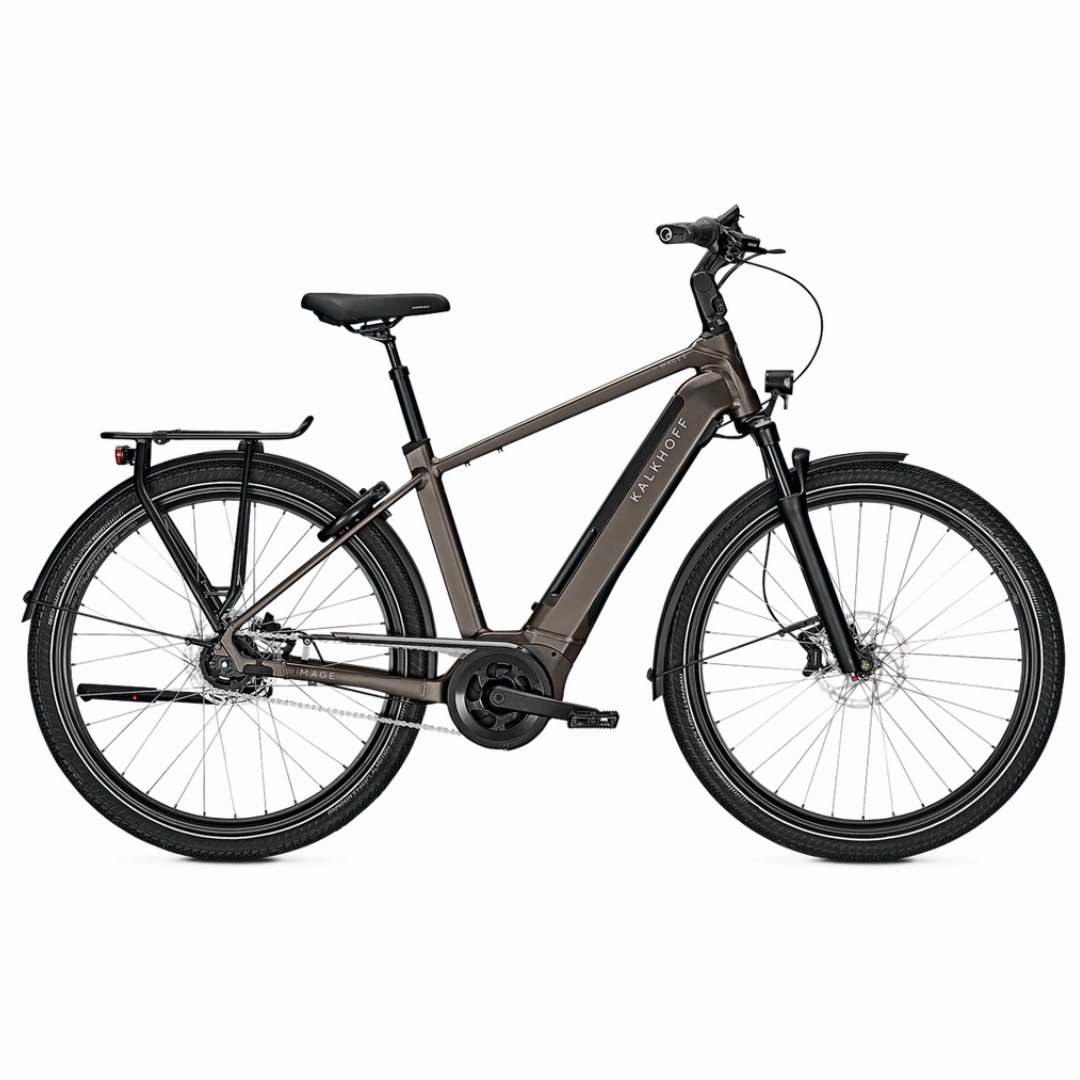

The safe and versatile go-to bike for your cycling day. If youre a person who needs to travel the urban jungle on a daily basis, you cant help but love the stunning integrated design, exceptional comfort and incredible versatility of the Image 5.B Move . Every component is designed for maximum comfort and complete safety. And yet, with its load capacity of up to 170 kg, this e-bike is also a cargo-carrying workhorse. Its your trusty multi-purpose machine for any challenge in or outside the city.
MOTOR/BATTERY SPECIFICATIONS
- MOTOR: Bosch Performance Line, 36 V / 250 W / 65 Nm
- DISPLAY: Bosch Intuvia LCD, with control panel and walk assist
- BATTERY: Bosch PowerTube Li-Ion 36 V / 17,4 Ah (625 Wh)
- RANGE: up to 80 km
- CHARGER: Bosch, 2A
SPECIFICATIONS
- SHIFTING SYSTEM: Shimano Nexus, 5-speed
- SHIFTER: Shimano Nexus
- CRANKSET: aluminium
- SPROCKET: Shimano
- GEAR RATIO: front: 38, rear: 27
- DRIVETRAIN: KMC Z1 EPT, anti-rust coating
- BRAKES: Tektro M530, 4-Piston/2-Piston, hydraulic disc brake
- BRAKE ROTORS: front: 180 mm, rear: 180 mm
- FRONT-LIGHT: Herrmans H-Black MR8, LED
- REAR-LIGHT: Trelock COB Line, LED
- FRAME: Integrale 0.6, Aluminium
- FORK: Suntour Mobie25 Air, lockout, 15 mm thru axle
- TRAVEL: 75 mm
- STEM: Concept EX, adjustable
- HANDLEBAR: Concept EX City Riser, Concept EX Ergo Riser
- GRIPS: Ergon GC10
- SADDLE: Selle Royal Essenza Plus
- SEATPOST: Patent XXL, suspension
- PEDALS: Comfort aluminium with anti slip protectionand reflector
- RIMS: Road Airline Plus, with eyelets
- HUBS: front: Shimano Alivio MT400, 15x100 mm with QR rear: Shimano Nexus, 5 speed
- TYRES: Schwalbe Big Ben Plus, 55-622
- FENDER: plastic, with edge protector
- CARRIER: Aluminium with Snap-IT System
- KICKSTAND: rear stand, adjustable
- LOCK: Trelock Balloon, 1 key for both locks, key removable
- PERMISSIBLETOTAL WEIGHT: 170 kg
