Product Specs
- FRAME MATERIAL: 6061 aluminum
- WHEEL SIZE: 24"
- TOP TUBE LENGTH: 21.75"
- CHAIN STAY LENGTH: 15.25"
- HEAD TUBE ANGLE: 73
- SEAT TUBE ANGLE: 72

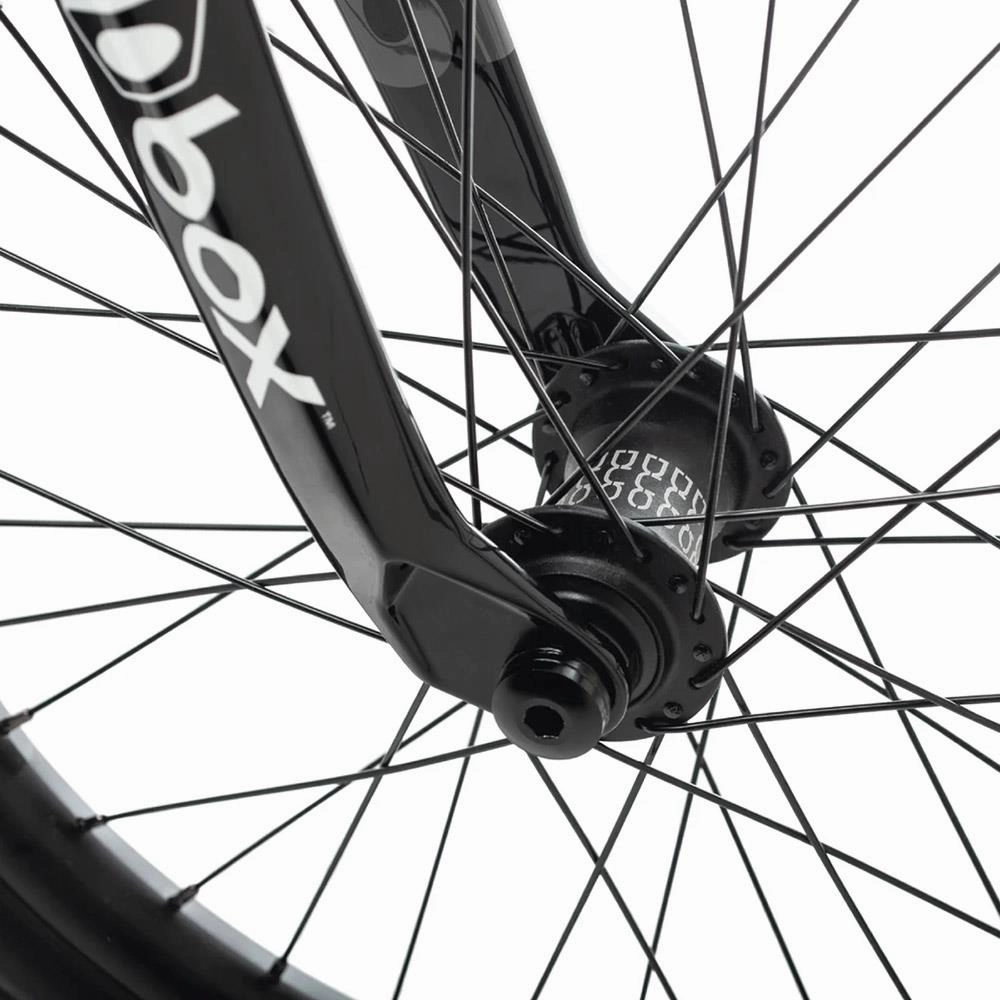

- FORKS: Box X5 carbon with 20mm thru-axle
- BARS: 6.6" rise, 100% chromoly

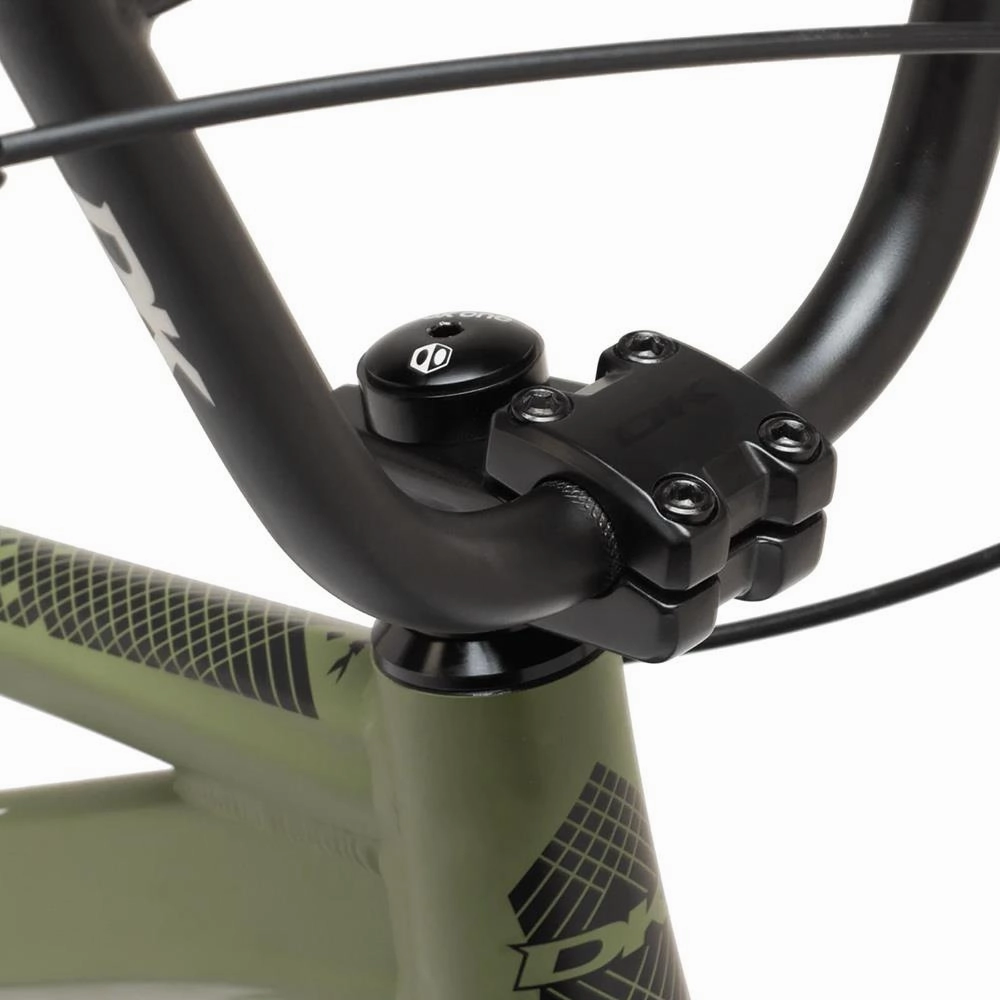

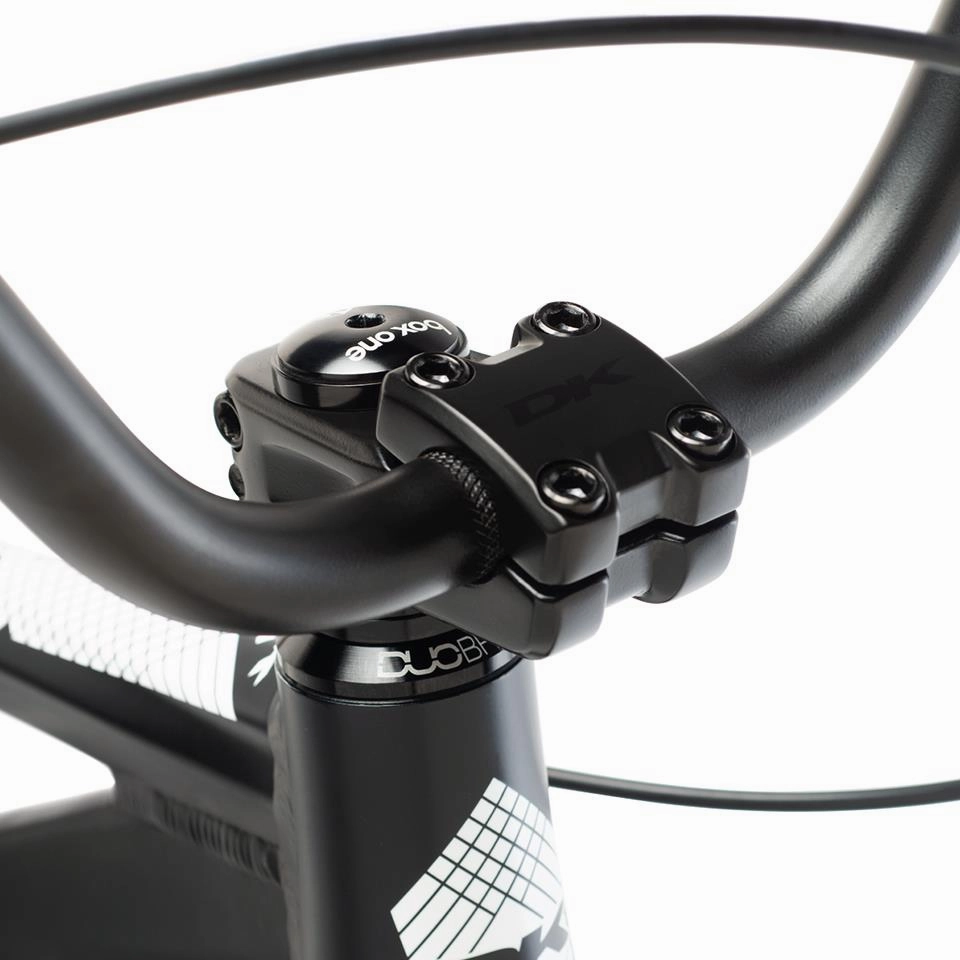

- STEM: DK forged alloy top load, 50mm reach

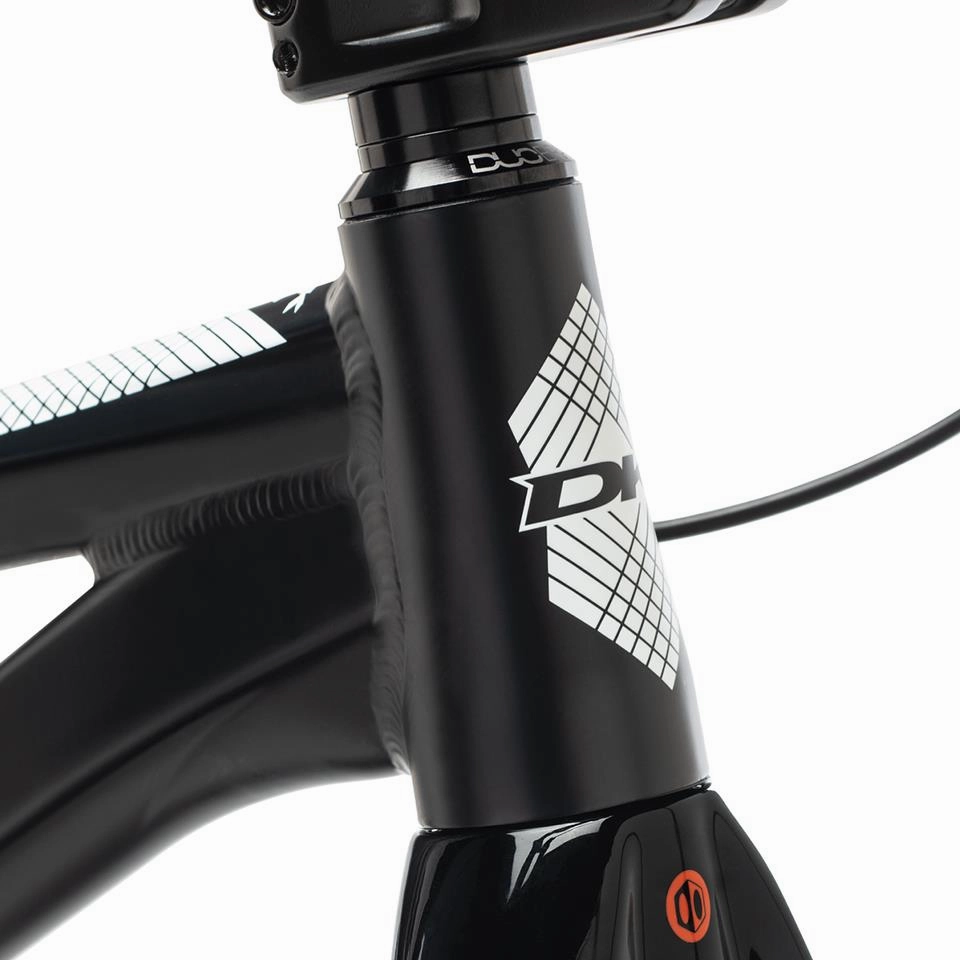

- HEADSET: Duo Brand, sealed integrated, tapered

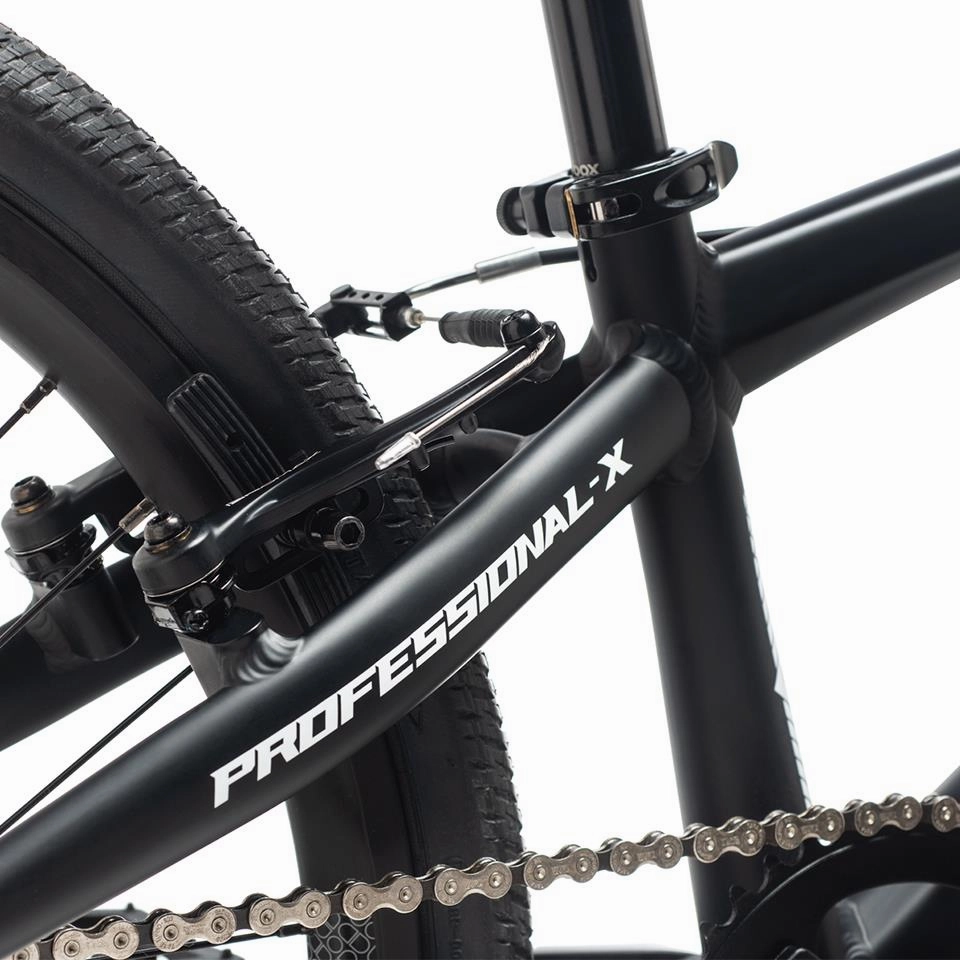

- BRAKE MOUNTS: V-Brake

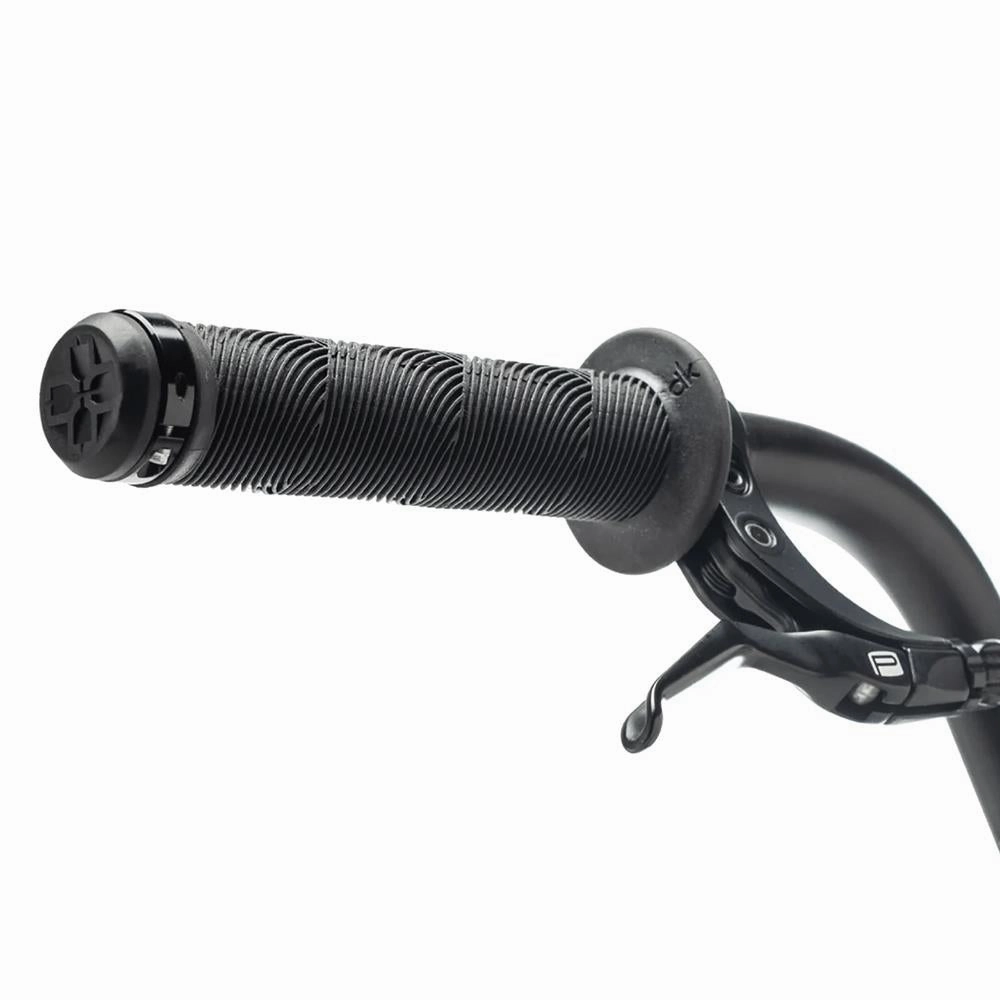

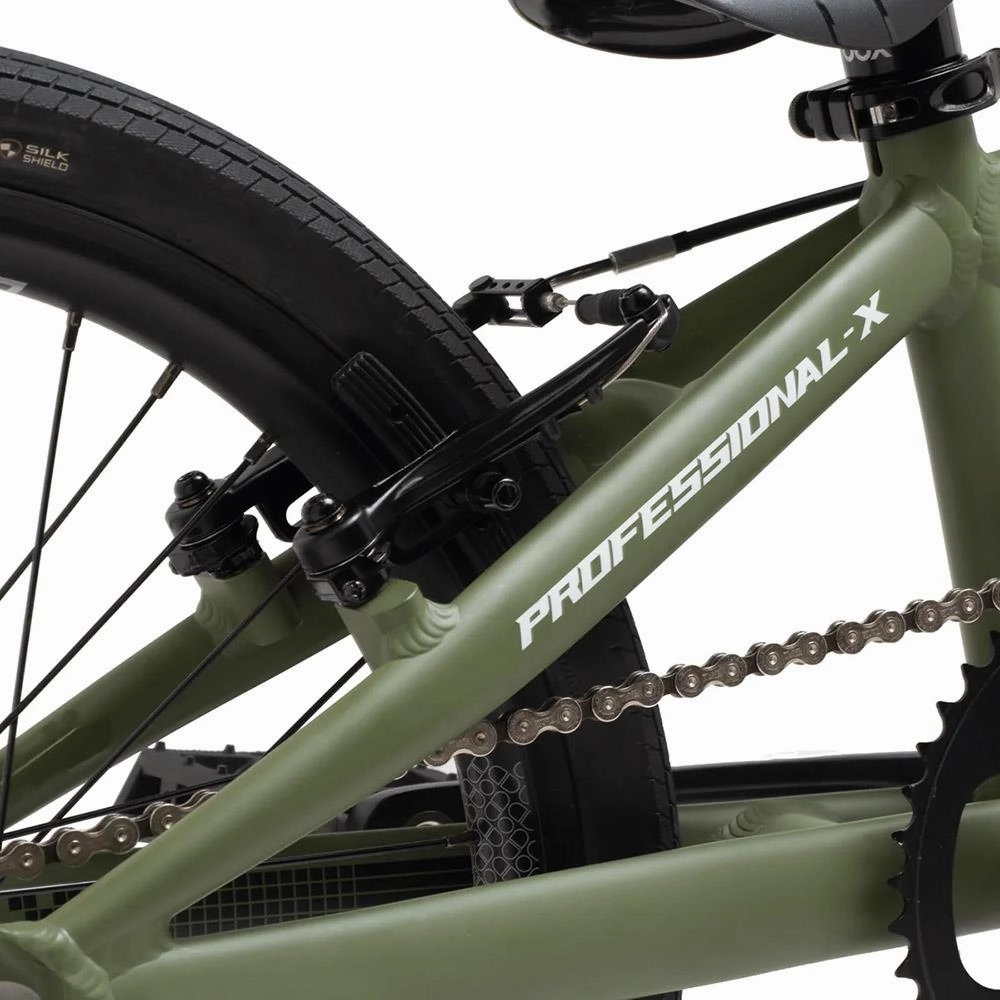

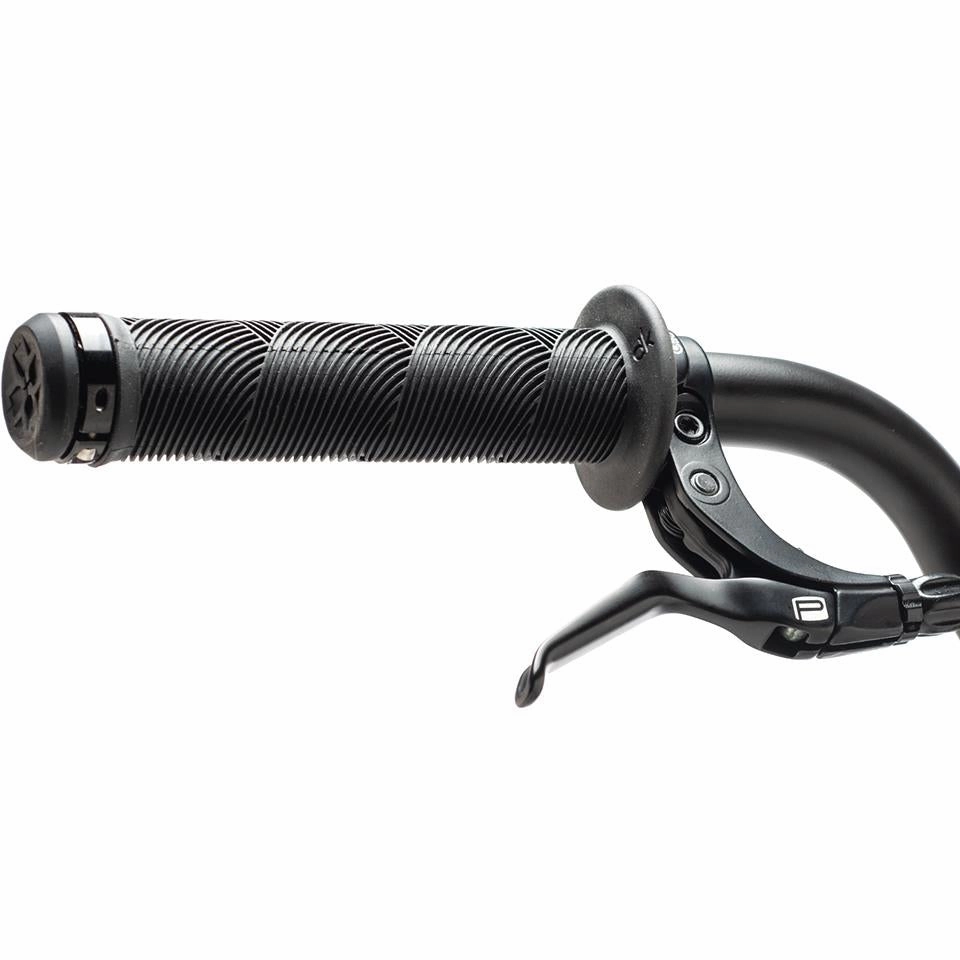

- BRAKES: Promax V-Point with airflow pads

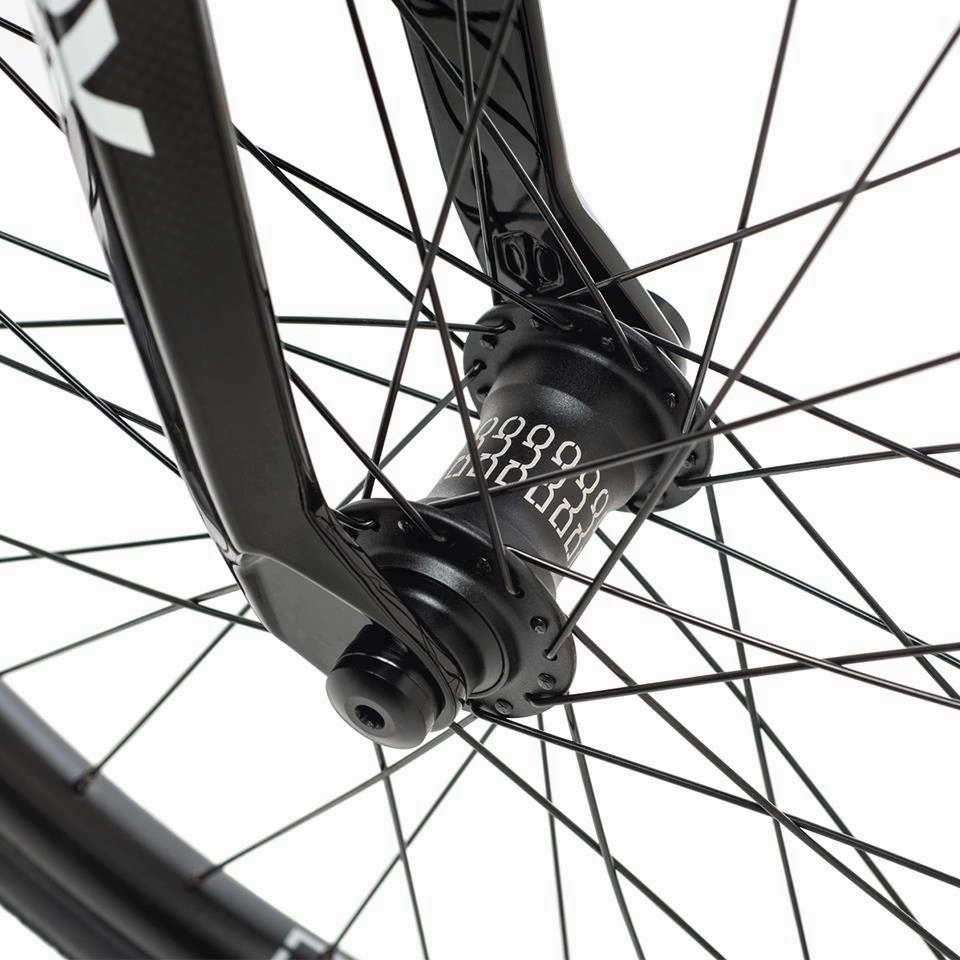

- FRONT HUB: Duo Brand R2, fully sealed, 20mm thru-axle
- FRONT RIM: Duo Brand R2, double wall, 36-hole, front specific design

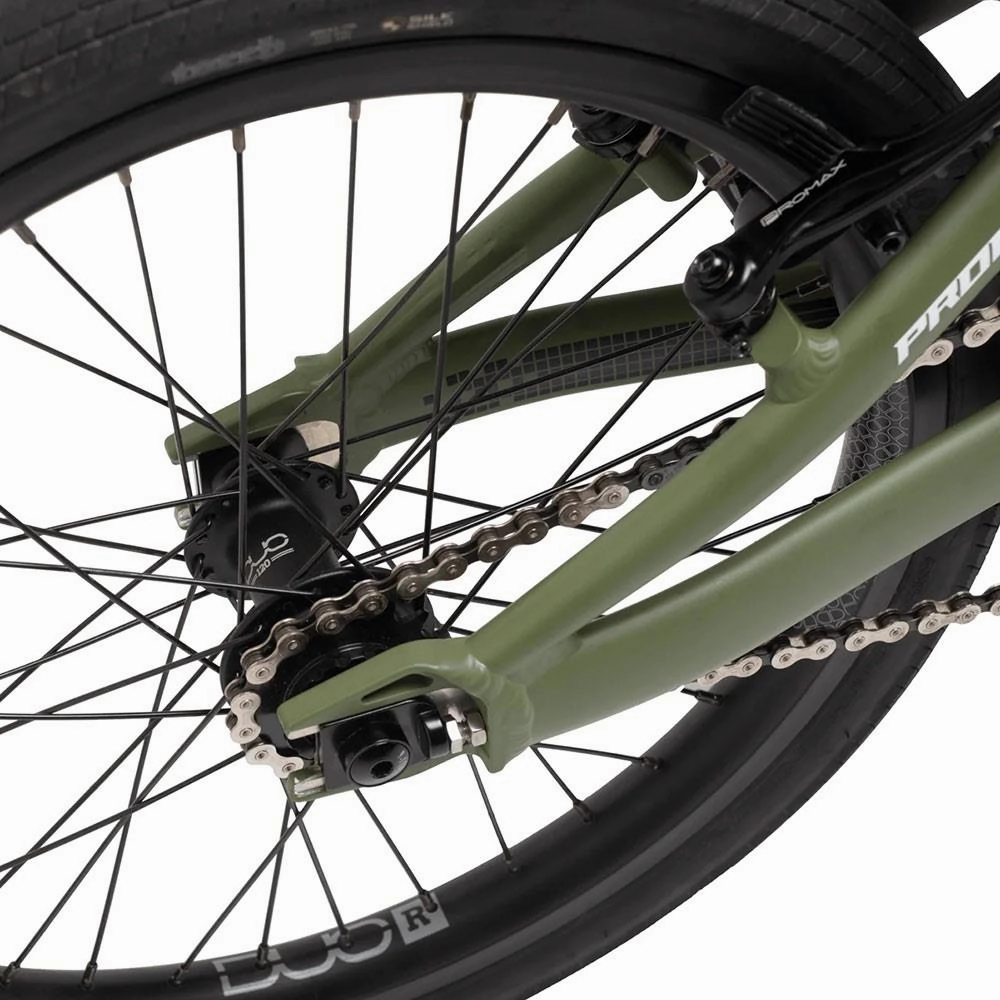

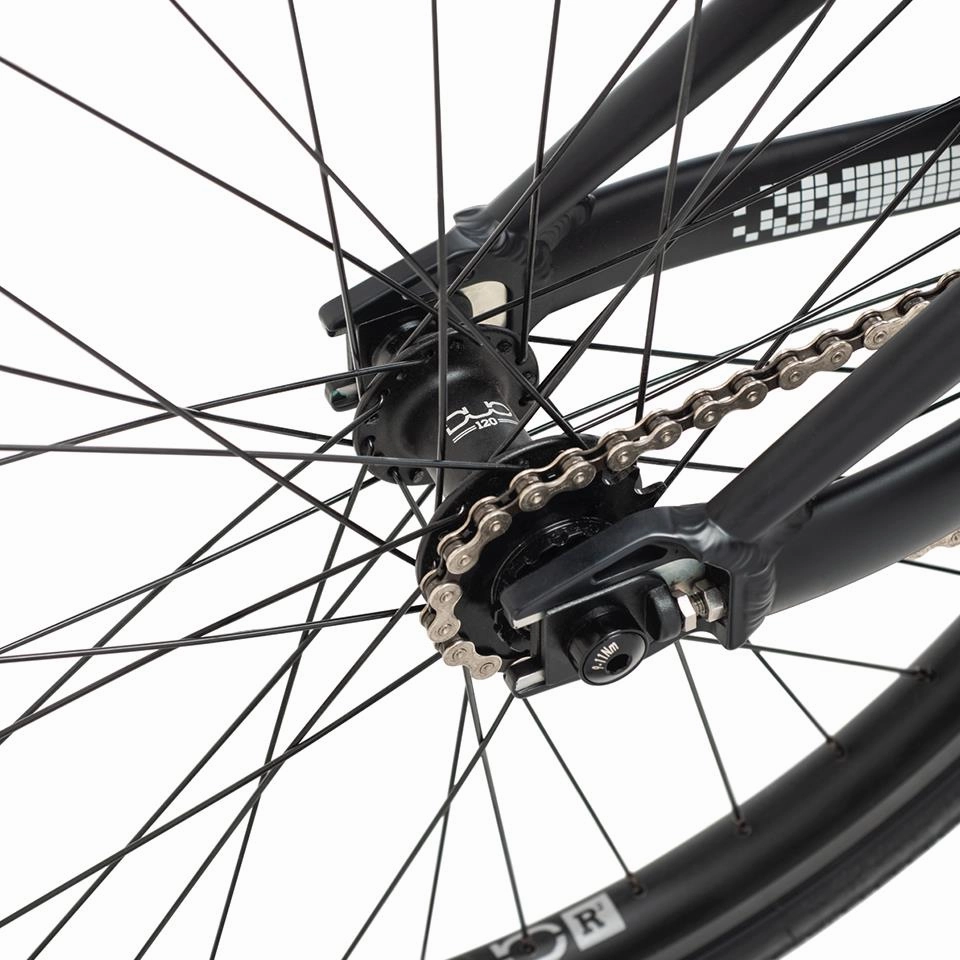

- REAR HUB: Duo Brand R2, fully sealed, 15mm thru-axle, 16-tooth cassette with 120 engagement points
- REAR RIM: Duo Brand R2, double wall, 36-hole, rear specific design
- TYRES: Maxxis DTS 24x1.75"

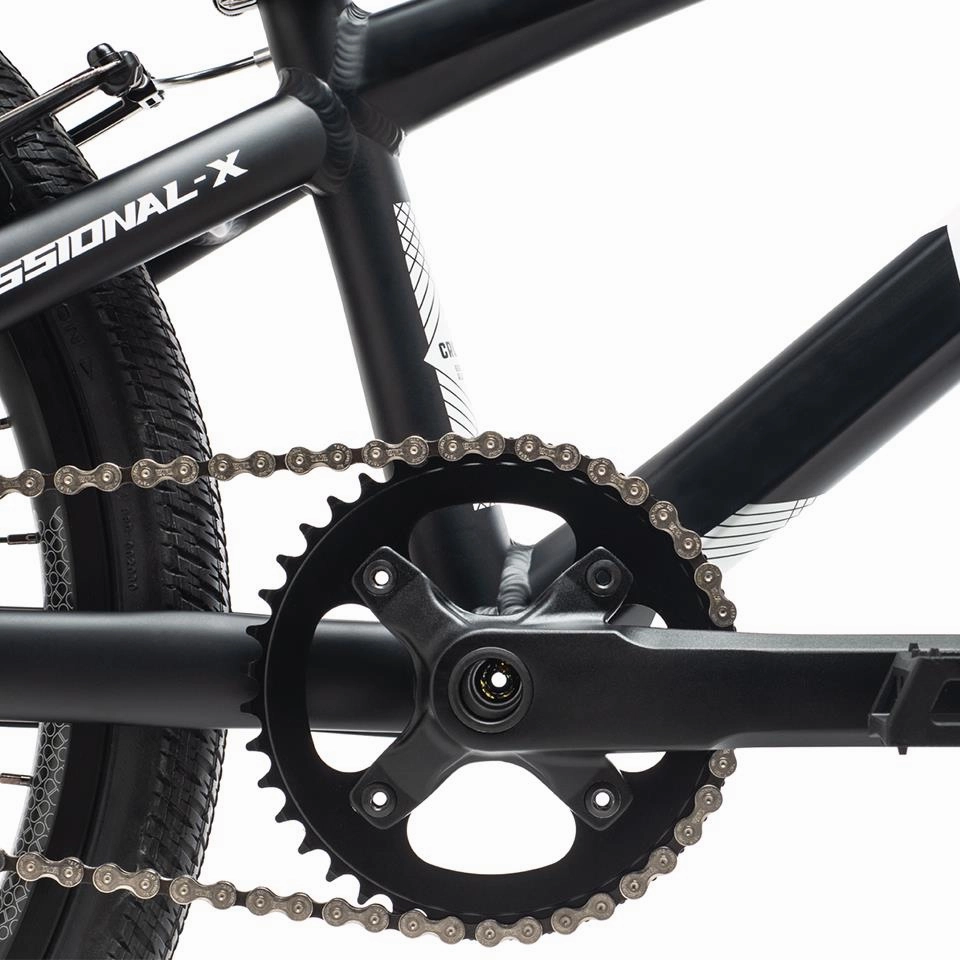

- SPROCKET: 40-tooth, alloy, 4-bolt chainring
- CRANKS: Forged alloy 2-piece, 175mm
- BB: 24mm European external (outboard)
- PEDALS: Duo Brand Resilite platform

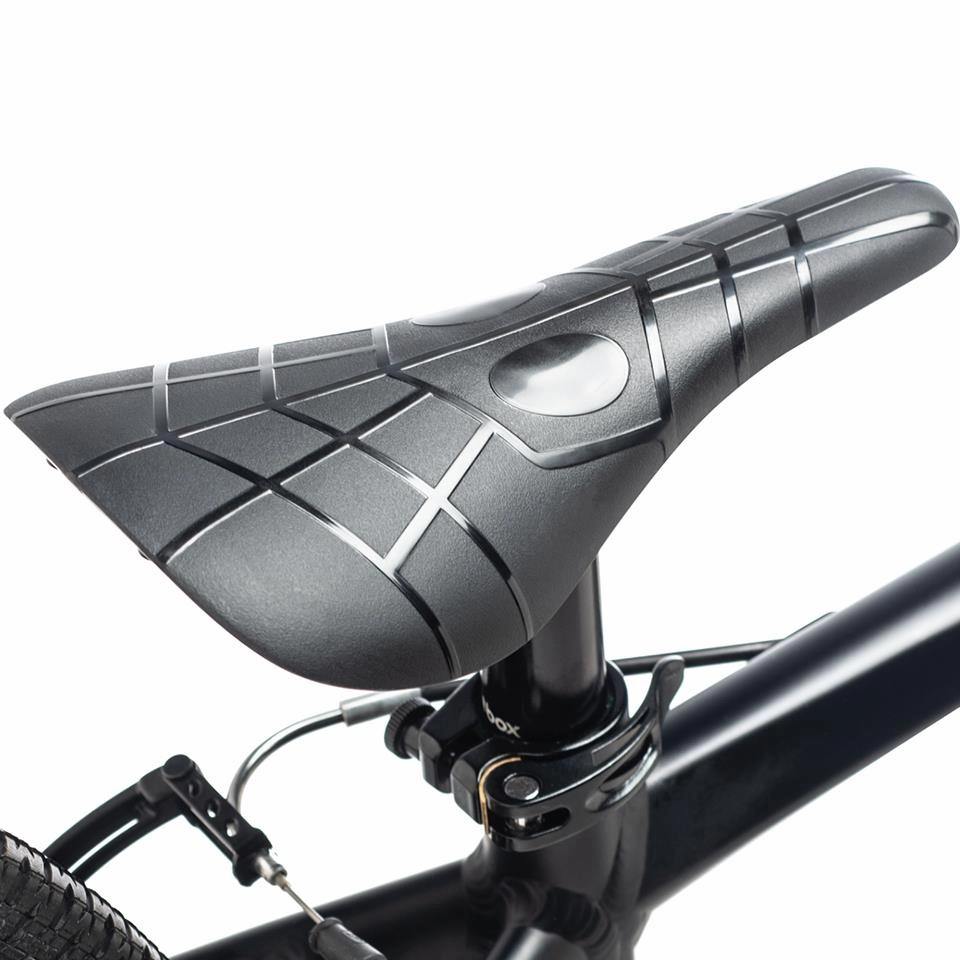

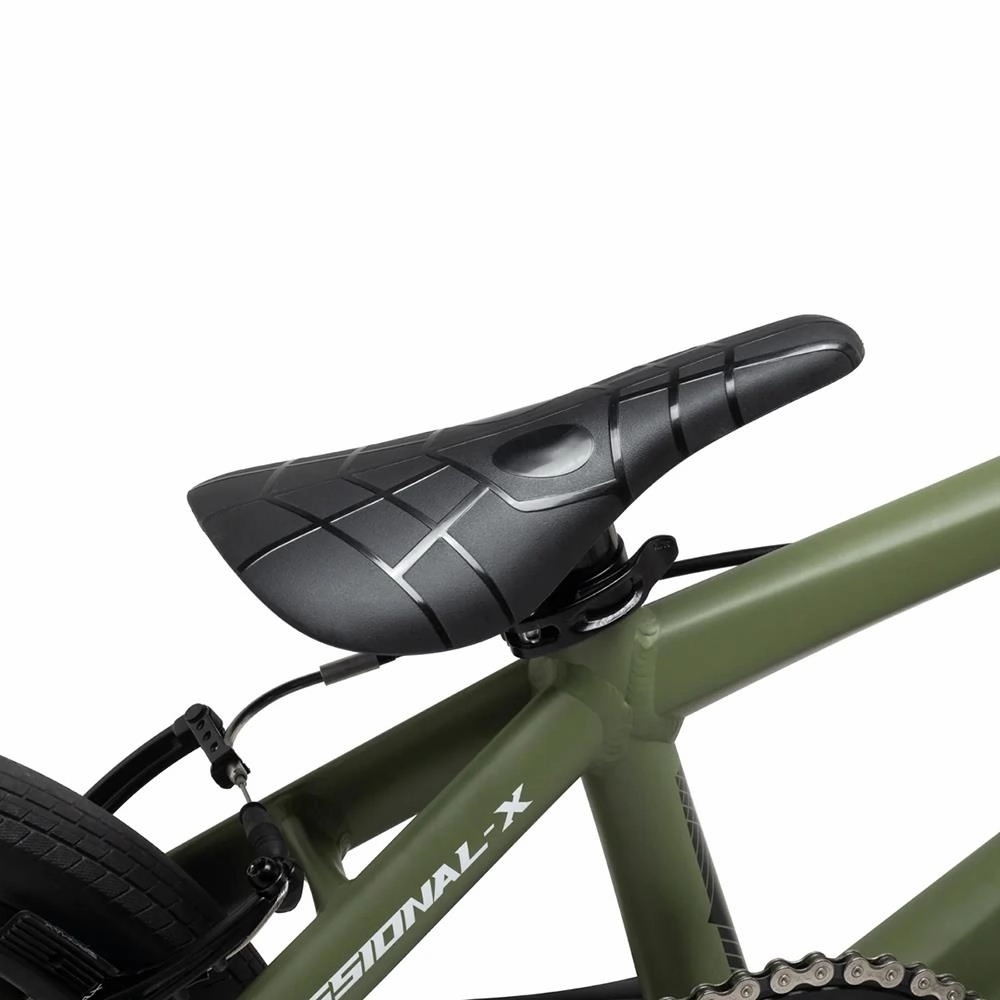

- SEAT: Box Echelon 1-piece seat/post combo
- GEARING: 40/16
- WEIGHT: TBC
###section###
Product Highlights

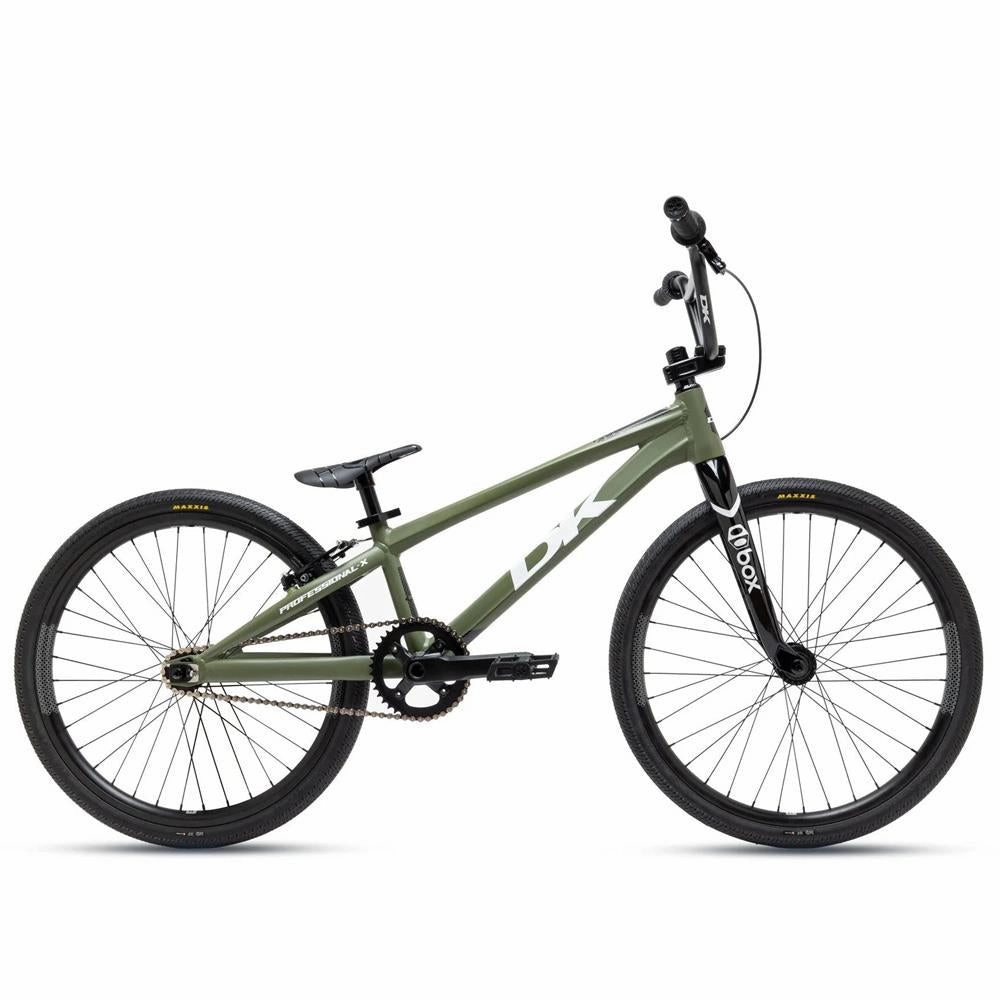

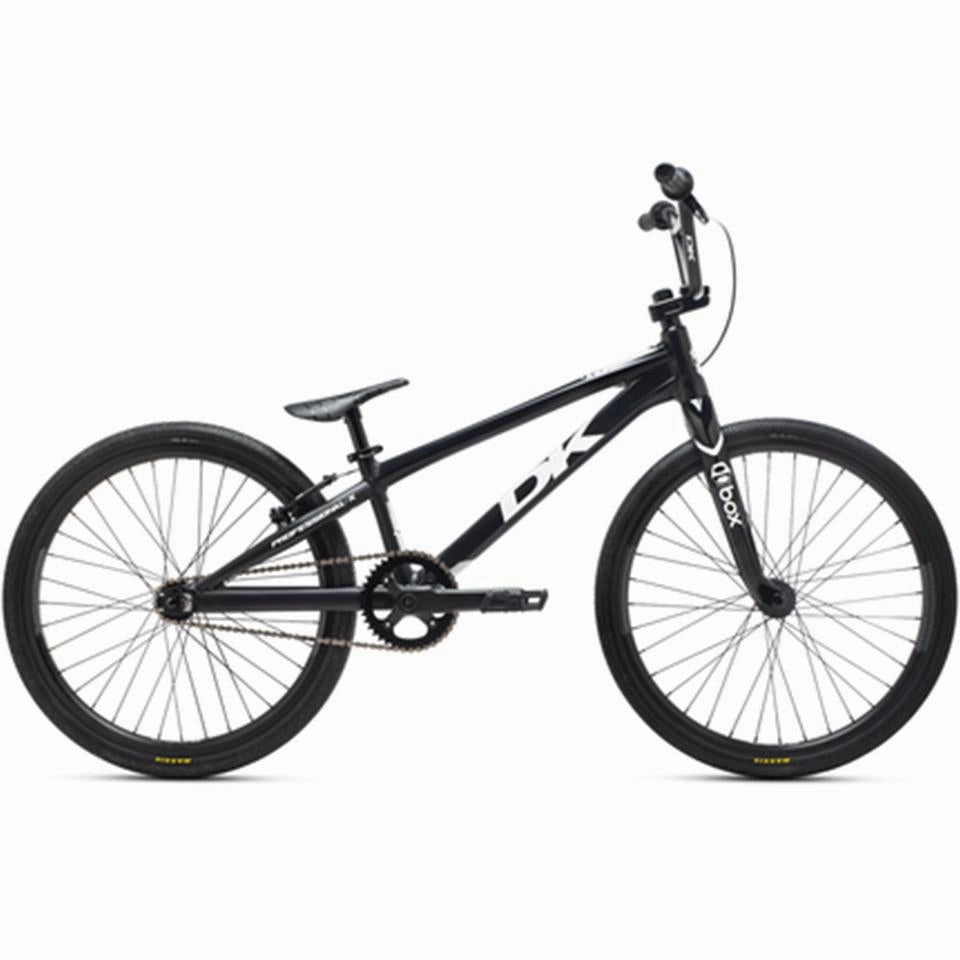

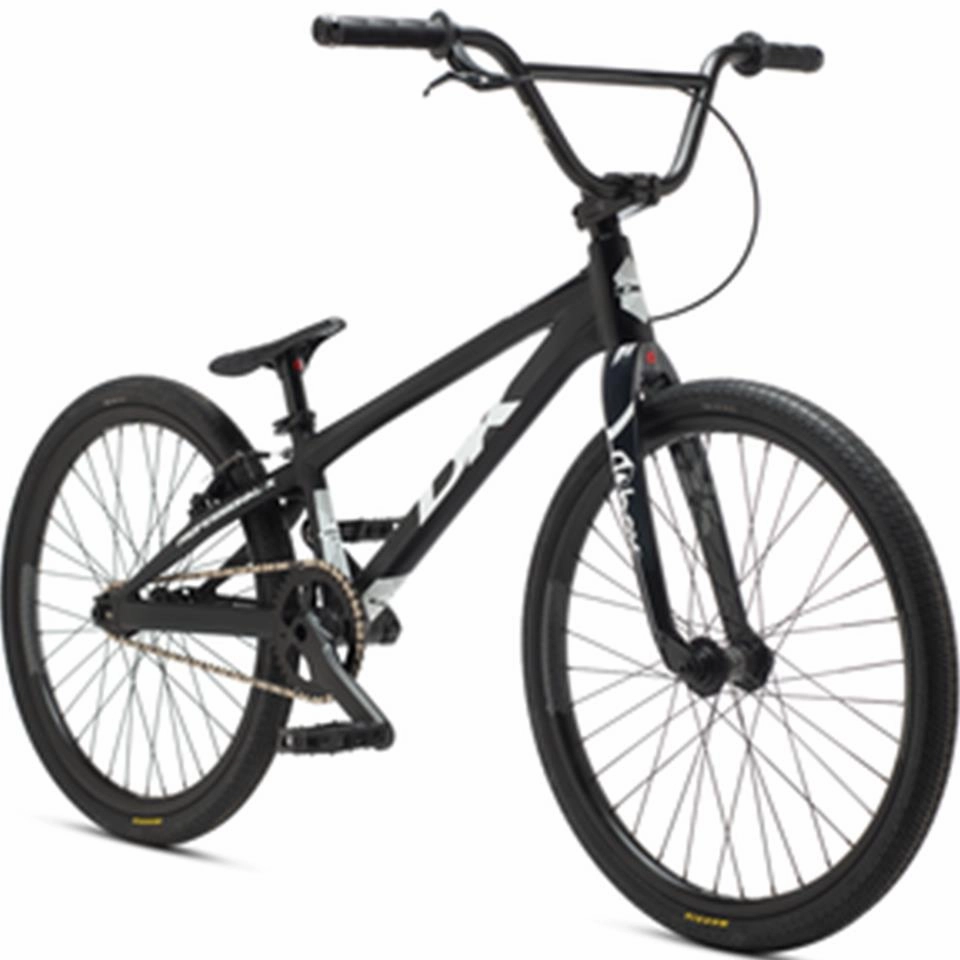

- Cruiser BMX Race bike with larger 24 wheels."
- A BMX race specific bike perfect for racers who want to take it to the next level
- Lightweight aluminium construction
- Lightweight carbon forks

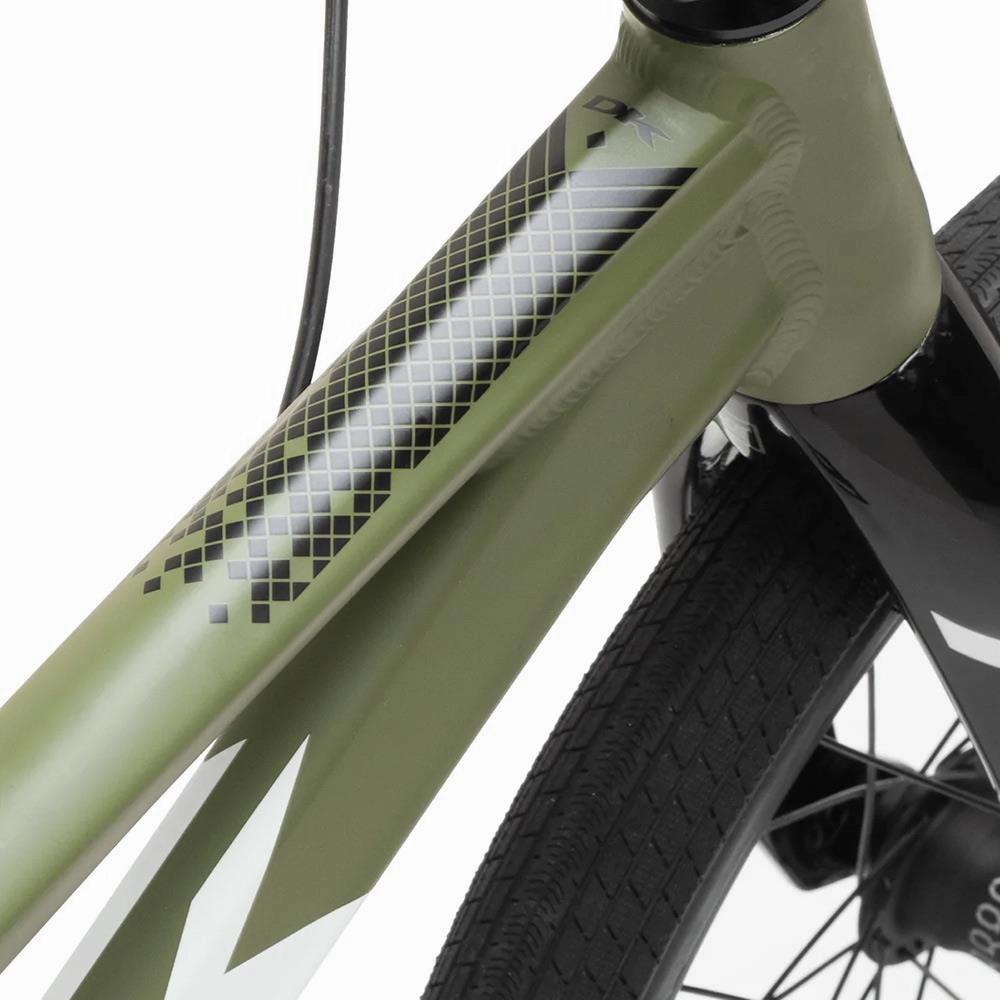

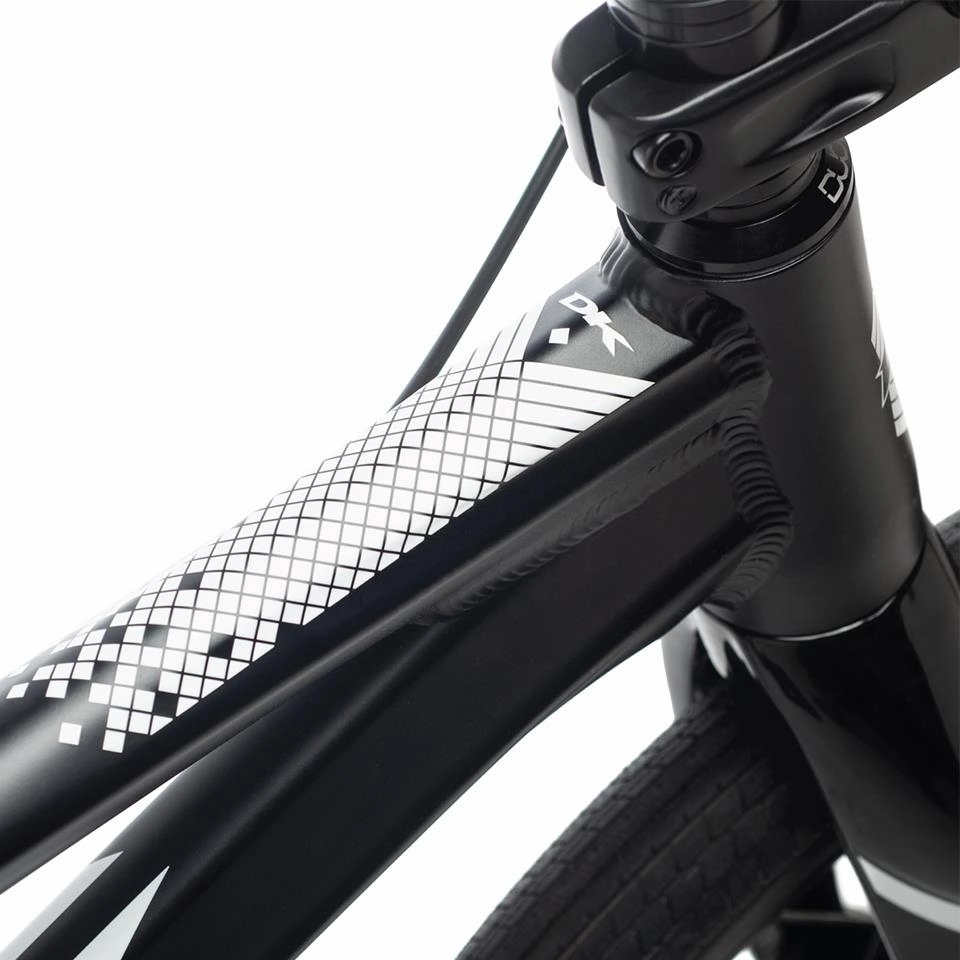

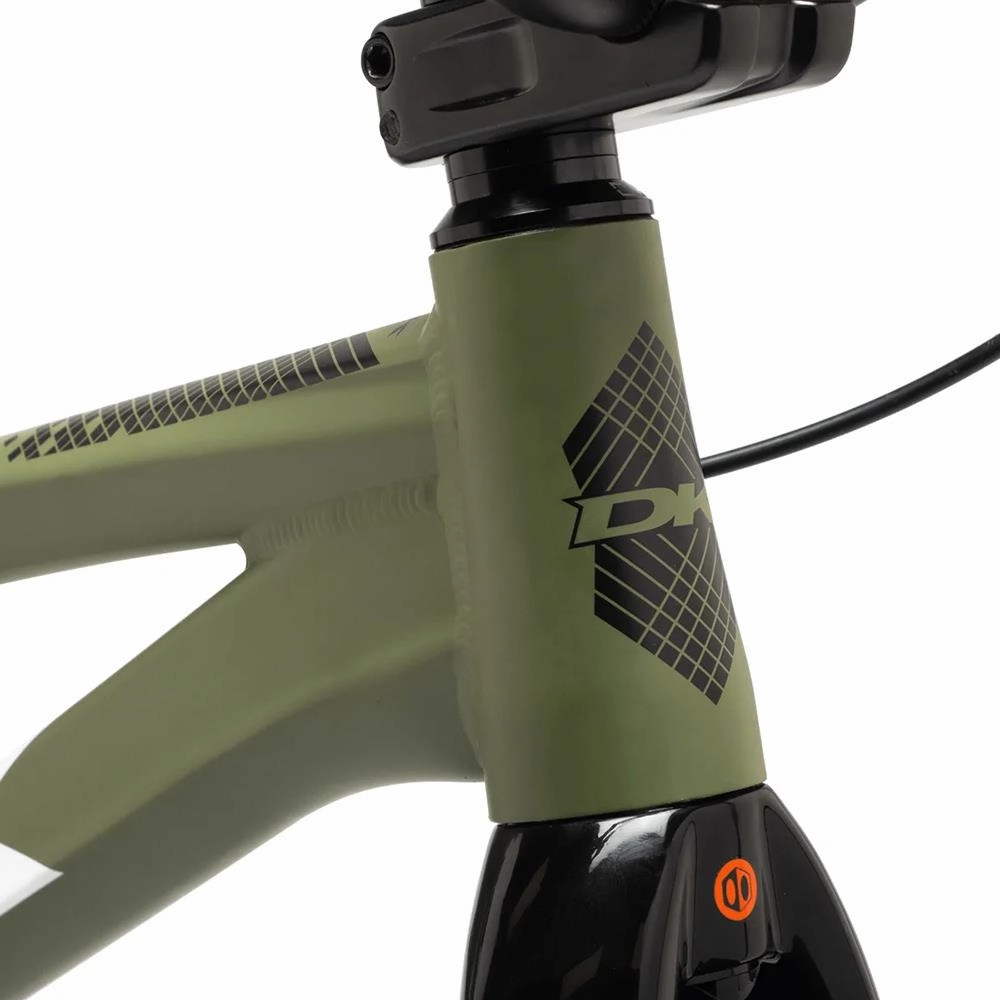

- Tapered head tube and internal cable routing
