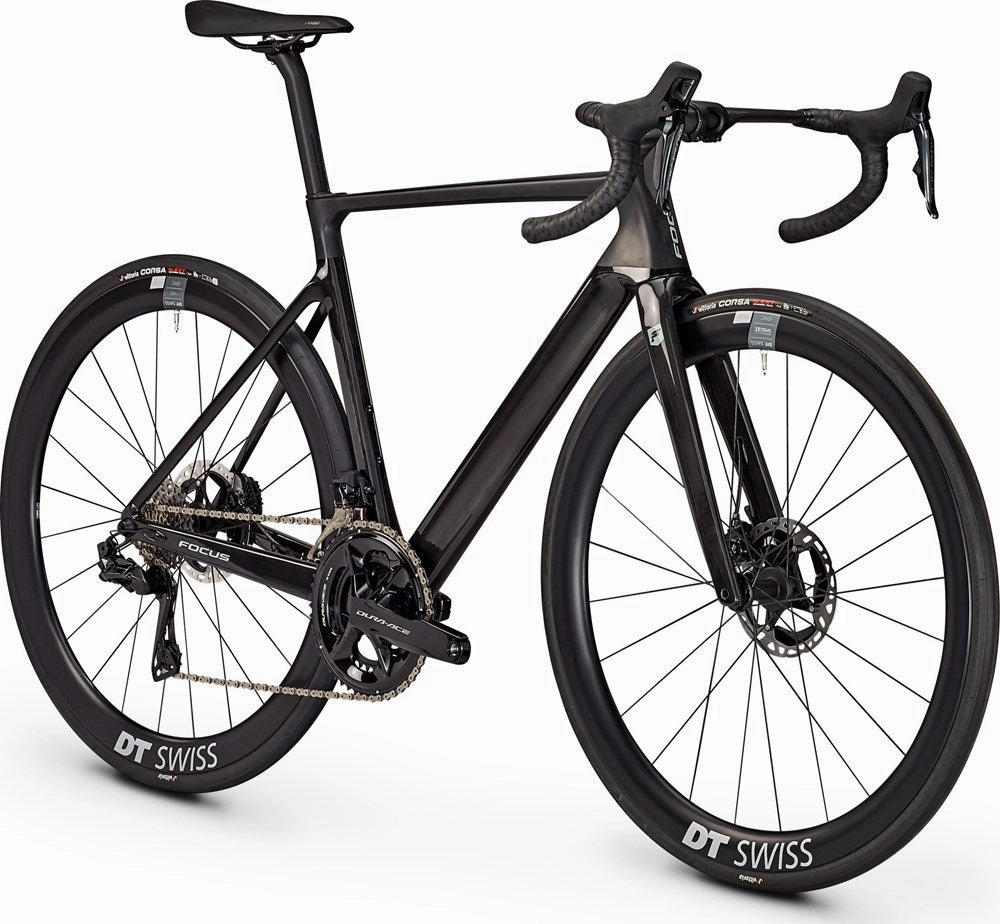

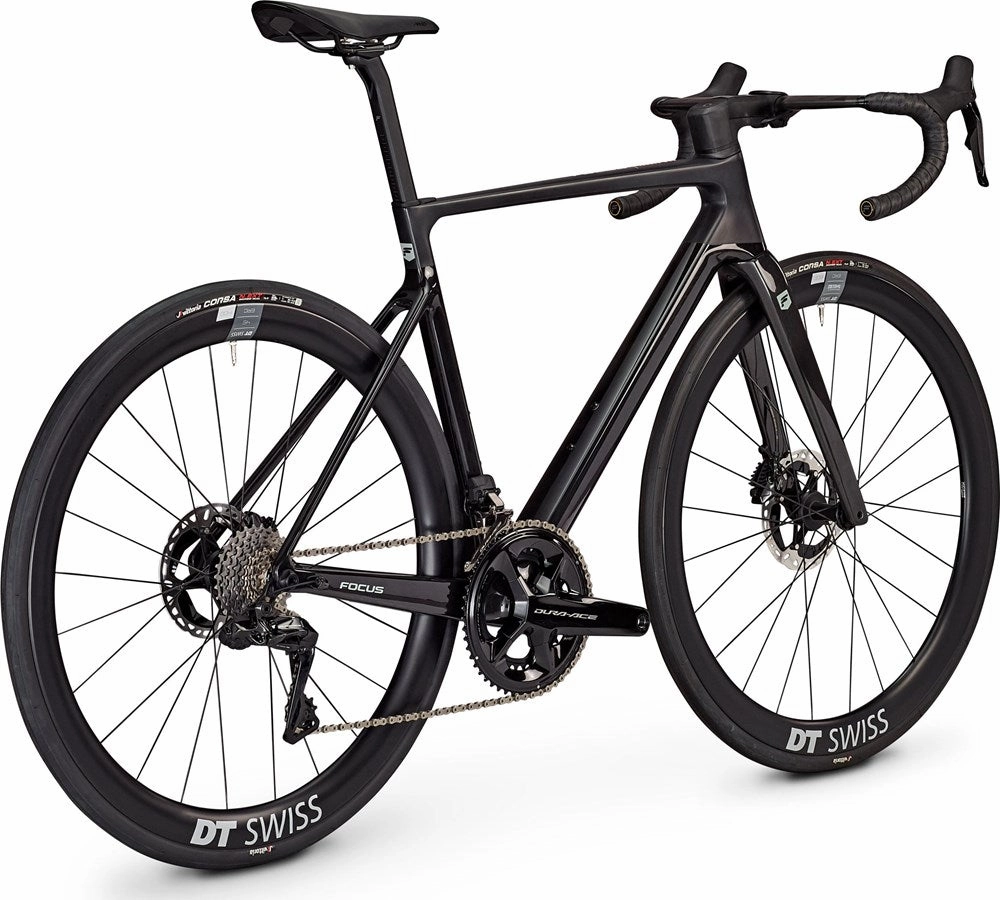

Name: Focus Izalco Max 9.9 - Carbon Raw & Matt Black
SKU: 314521

IZALCO MAX MAKES YOU FASTER

Focus asked themselves: What is the very essence of a road bike? Speed! Is that what the IZALCO MAX stands for? Absolutely yes! You being fast on an IZALCO MAX is what the team at Focus are aiming for. Therefore, everything about the IZALCO MAX is fast uncompromisingly fast.

Where marginal gains count, Focus have made there fastest road bike ever! It is the perfect composition of aerodynamics, stiffness and weight for those who don't compromise on speed in any situation. With the IZALCO MAX, there are no slow rides. It is truly the essence of pace.

AERO GAINS

And there is more: a standard water bottle on the down tube is almost completely hidden from the wind with a minimal effect of only 0.3 W. Because unfortunately we all dont have personal domestiques and need to carry water ourselves.

WHEN STIFFNESS MEETS COMFORT

Striking the perfect balance between stiffness and comfort is the pinnacle of frame design. A pinnacle we climbed particularly for this IZALCO MAX.

EFFORTLESS HANDLING

So, we protected those characteristics to carefully refine the geometry for easier cornering, especially at high speeds. This will boost your confidence and therefore how fast you want to push it.

SPECIFICATION

Frame: MAX technology carbon, disc, BB86, 142x12mm thru axle, flat mount 160/140mm, internal cable routing

Fork: MAX technology carbon, integrated cable routing, disc, 100x12mm, flat mount

Shifter: Shimano Dura-Ace Di2 R9250, 12-Speed

Front Derailleur: Shimano Dura-Ace Di2 R9250, 12-Speed

Rear Derailleur: Shimano Dura-Ace Di2 R9250, 12-Speed

Cassette: Shimano Dura-Ace CS-R9200, 12-Speed

Chain: Shimano XTR CN-M9100, 12-Speed

Crankset: Shimano Dura-Ace R9250, 12-Speed

Transmission Of Drive: Front: 52/36, Rear: 11-30

Bottom Bracket: Shimano Pressfit Road BB86

Handlebar: Easton EC70 Aero, carbon, drop: 125mm, reach: 80mm

Grips:FOCUS Bartape SL

Stem:FOCUS C.I.S. 2.0 integrated, 31.8 mm, aluminium, with Garmin / Wahoo-Mount

Headset:ACROS IS 52/286-IS52/40 (ICR), FOCUS integrated C.I.S.

Saddle:fi'zi:k Vento Argo R5

Seatpost: FOCUS Aero Carbon, D-shape, 350mm, set-back: 15mm

Brake: Shimano BR-R9270, 12-Speed

Front Brake Disc: 160mm

Rear Brake Disc: 160mm

Wheelset: DT Swiss ERC1400, carbon, 622-22, 12x100mm / 12x142mm, 45mm height

Front Tyre: Vittoria Corsa, Next TLR, 28-622, Folding

Rear Tyre:Vittoria Corsa, Next TLR, 28-622, Folding

**Weight: 7.2kg

Permissible System Weight:110kg

* Subject to technical modification without notice. Errors and omissions excepted.

** Weight in size M, of standard specification and without pedals.

Geometry

		XXS	XS	S	L	XL	XXL
	Size in mm	470	500	520	560	580	610
	Handlebar Width	400	400	400	420	420	440
	Stem Length	80	90	100	110	120	120
	Crank Length	165	165	170	172.5	175	175
A	Seat Tube Length	455	475	495	535	555	585
B	Top Tube Length	505	517	530	568	582	607
C	Head Angle ()	70	71	72	72.5	73	73
D	Seat Angle ()	75	74.5	74	73.5	73	73
E	Chainstay Length	410	410	410	410	410	410
F	Bottom Bracket Drop	72	72	72	72	72	72
G	Head Tube Length	90	100	115	155	175	195
H	Fork Length	371.5	371.5	371.5	371.5	371.5	371.5
I	Fork Offset	46	46	46	46	46	46
J	Wheelbase	975	976	975	1004	1008	1033
K	Stack	500	513	531	571	592	611
L	Reach	370	375	378	399	401	420
M	Standover Height	746	762	778	814	835	857
