Description

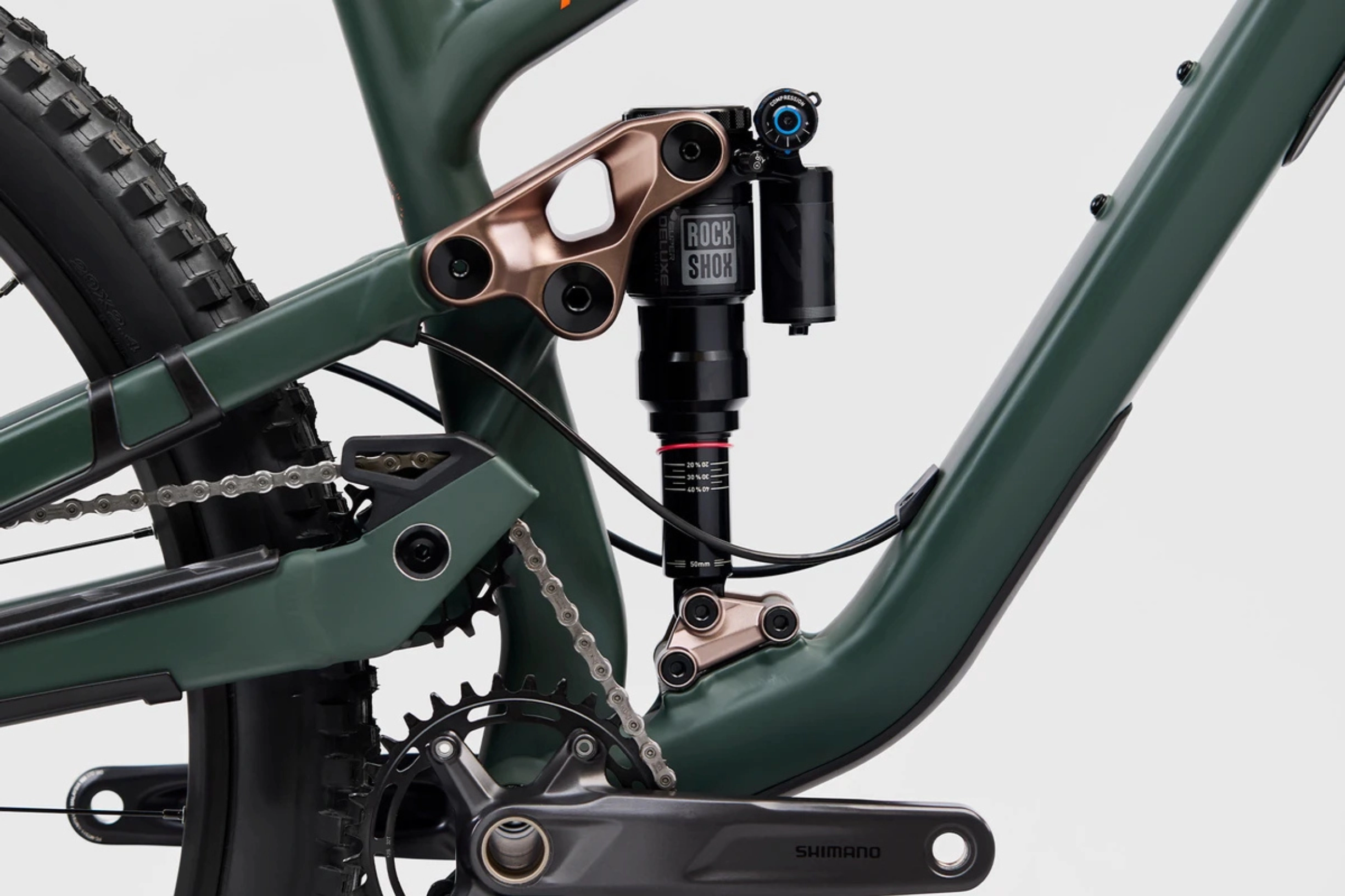

Whether youre ripping fast flowy singletrack, putting the power down on punchy climbs, or tearing the tires off in the corners, the Optic continues to push the boundaries of whats possible on a short travel trail bike. With increased rearward axle path, idler, and the innovative VPSHPsuspension layout, this new design gives the Optic next-level confidence and capability, up or down the trail.
Specifications
| Frame | Aluminum Frame, 125mm Travel, UDH, Eagle Transmission Compatible, Ride Aligned |
| Fork | Rockshox Pike Base, 140mm, 44mm offset, Fender Included |
| Rear Shock | Rockshox Super Deluxe Select , 185x50 TR |
| Rear Shifter | Shimano Deore SL-M6100, 12sp |
| Rear Derailleur | Shimano Deore RD-M6100, 12sp |
| Crankset | Shimano Deore FC-MT512, 30T, CL55, 165mm (S1,S2) -170mm (S3,S4,S5) |
| Bottom Bracket | Shimano Sealed Bearing, BSA 73mm |
| Cassette | Shimano Deore CS-M6100-12, 12 Speed, 10-51T |
| Chain | Shimano Deore CN-M6100, 12sp |
| Chain Guide | Norco Idler Guide and Lower Guide |
| Front Brake | Shimano Deore MT520 4-Piston, Metallic Pads |
| Front Brake Rotor | Shimano RT-64, 180mm rotor, C-lock |
| Rear Brake | Shimano Deore MT520 4-Piston, Metallic Pads |
| Rear Brake Rotor | Shimano RT-64, 180mm rotor, C-lock |
| Brake Levers | Shimano Deore MT520 |
| Handlebar | 6061 Alloy, 800mm, 25mm Rise |
| Stem | Norco 40mm length , 35mm clamp |
| Seatpost | TranzX YS105, 34.9mm, 150 (S1) -170mm (S2) -200mm (S3,S4) -230mm (S5) |
| Headset | FSA No. 57 ZS, Sealed Bearing, Tapered 1-1/8" - 1.5", ( ZS44/28.6 | ZS56/40 ) |
| Saddle | SDG Bel Air V3 |
| Grips | Ergon GE1, Slim (S1, S2) Standard (S3,S4,S5) |
| Seatpost Clamp | Norco Alloy Nutted Clamp, 38.5 ID |
| Tool | OneUp EDC Lite tool |
| Front Hub | Shimano HB-TC500, 15x110mm Boost, 32H, C-lock |
| Rear Hub | Shimano FH-MT500, 12x148 Boost, Micro Spline, 32H, C-lock |
| Rims | WTB ST i30, 32H, F/R-29", 30mmID |
| Front Tire | Maxxis Minion DHF, 3C Max Terra EXO, 29x2.5", Folding |
| Rear Tire | Maxxis Disector, 3C Max Terra EXO, 29x2.4", Folding |
| Rear Hub Skewer | 148mm x 12mm TA, L174, TL13, M12x1.0 |
| Spokes/Nipples | Stainless steel |
| Valves | Stan's Tubeless Valves |
| Sealant | Stan's Sealant |
| Weight | 17.2 kg (37.9 lbs) |
| Weight Size | S3 |
Geometry
| 5 | 4 | 3 | 2 | 1 | 5 | 4 | 3 | 2 | 1 |
|---|---|---|---|---|---|---|---|---|---|
| 29" | 29" | 29" | 29" | 29" | 29"/27.5" | 29"/27.5" | 29"/27.5" | 29"/27.5" | 29"/27.5" |
| Travel (mm front/mm rear) | |||||||||
140/125 | |||||||||
| Reach | |||||||||
| 522.5 | 497.5 | 472.5 | 447.5 | 422.5 | 522.5 | 497.5 | 472.5 | 447.5 | 422.5 |
| Stack | |||||||||
| 644 | 635 | 626 | 617 | 608 | 644 | 635 | 626 | 617 | 608 |
| HTAHead Tube Angle | |||||||||
65 | |||||||||
| OSFork Offset | |||||||||
44 | |||||||||
| STSeat Tube Length | |||||||||
| 445 | 430 | 385 | 370 | 350 | 445 | 430 | 385 | 370 | 350 |
| STAEffective Seat Tube Angle | |||||||||
| 77.5 | 77.25 | 77 | 76.75 | 76.5 | 77.5 | 77.25 | 77 | 76.75 | 76.5 |
| RCRear Centre Length | |||||||||
| 437 | 433 | 429 | 425 | 421 | 431 | 427 | 423 | 419 | 415 |
| BBDF/RBottom Bracket Drop (Front/Rear) | |||||||||
| 32/32 | 32/32 | 32/32 | 32/32 | 32/32 | 32/11 | 32/11 | 32/11 | 32/11 | 32/11 |
| BBHBottom Bracket Height | |||||||||
346 | |||||||||
| HTTHorizontal Top Tube | |||||||||
| 665 | 641 | 617 | 593 | 568 | 665 | 641 | 617 | 593 | 568 |
| WBWheelbase | |||||||||
| 1292 | 1259 | 1226 | 1193 | 1159 | 1287 | 1254 | 1221 | 1188 | 1154 |
| SOHStandover | |||||||||
| 714 | 703 | 682 | 673 | 660 | 714 | 703 | 682 | 673 | 660 |
| HTHead Tube Length | |||||||||
| 140 | 130 | 120 | 110 | 100 | 140 | 130 | 120 | 110 | 100 |
| Trail | |||||||||
128 | |||||||||
| Recommended Seatpost Drop | |||||||||
| 230 | 200 | 200 | 170 | 150 | 230 | 200 | 200 | 170 | 150 |
| Maximum Post Insertion | |||||||||
| 330 | 300 | 300 | 270 | 250 | 330 | 300 | 300 | 270 | 250 |
| Stem Length | |||||||||
40 | |||||||||
| Crank Length | |||||||||
170 | |||||||||
| Tire Size | |||||||||
2.35" 2.6" | |||||||||
| Water Bottle Compatible | |||||||||
| 1 x 750 mL | 1 x 750 mL | 1 x 750 mL | 1 x 750 mL | 1 x 620 mL | 1 x 750 mL | 1 x 750 mL | 1 x 750 mL | 1 x 750 mL | 1 x 620 mL |
