Description

TheMountain Bikers E Bike

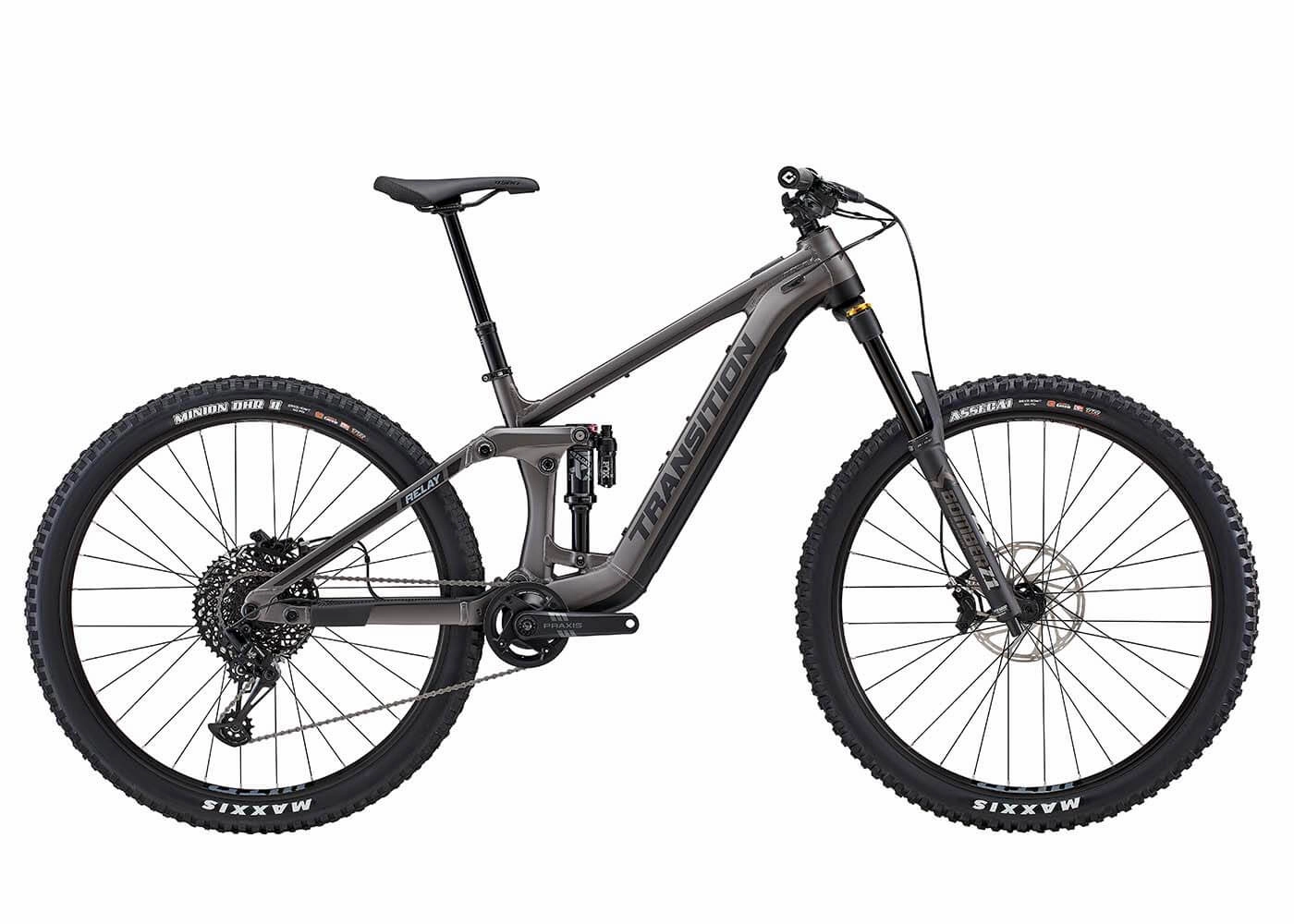

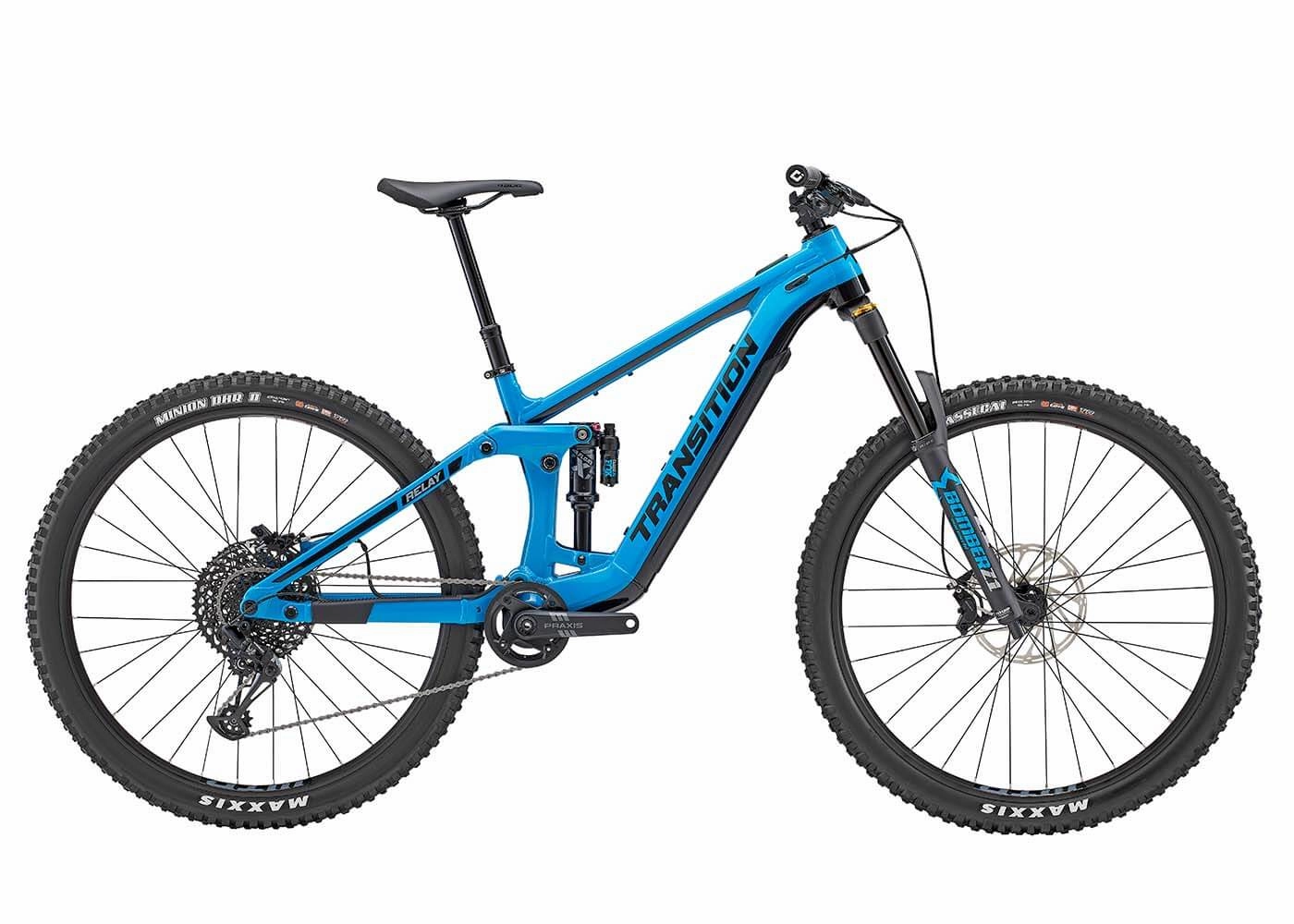

Living in uncharted territory, the Relay is a lightweight, mid-power ebike here for all of your rides, battery or human powered. From square one the Relay was built with modularity in mind. Starting with a frame that accommodates 160 or 170 travel front and rear, as well as dual 29 or mixed wheels, this bike is ready for any trail you point it down. At the core of this chariot is the Fazua Ride 60 system that provides 60nm of power to get you up the hill, with a 430 wh battery to keep you going for miles on end. We have always wanted a bike that could provide both an ebike and a human powered experience in one chassis, and this is it. This system is light, efficient, and quiet, providing a more intuitive and natural feel on trail than many expect from a powered ride. The Relay is here to meet all of your mountain biking needs.

More images to come

Specification

Frame -Transition RelayAlloy
Motor -Fazua Ride 60
Battery -Fazua Energy 430 Removable
Display-Fazua LED Hub
Mode -Fazua Ring Ctrol
Rear Shock -Fox Float X Performance 2 Position
(160mm Travel/205x60mm)
Fork -Marzocchi Z1 Air
(160mm Travel/44mm Offset/1.5 Taper)
Headset -FSA No 55R/44
Stem -RaceFace Aeffect R (40mm)
Bar -RaceFace Chester
XS/SM (800x20) MD/LG/XL/XXL (800x35)
Grips -ODI Elite Flow Lock-On
Sadde -SDG Bel-Air V3
Seatpost -OneUp Dropper Post
120mm XS
150mm SM
180mm MD
210mm LG/XL/XXL
Brakes -SRAM Code R
Rotors -SRAM Centerline (200mm)
Shifter -SRAM NX
Derailleur -SRAM NX
Cassette -SRAM XG 1275 (10-52t)
Chain -SRAM PG 1230 (11-50t)
Crank -Praxis ETOR Alloy
(160mm XS, 165mm SM-XXL)
Chainring -SRAM 104 BCD 32t Alloy Ring
Spider -Transition Direct Mount Spider
Includes Bashguard
Rims -WTB ST i30 TCS 2.0
Spokes -Pillar Double Butted
Hubs -Novatech D791SB/D902SB
Front Tire -Maxxis Assegai 3C EXO (29x2.5)
Rear Tire -Maxxis Minion DHRII 3C EXO (29x2.4)
Other -Fazua Charger, Tubeless Valves & Sealant

Geometry

Size
