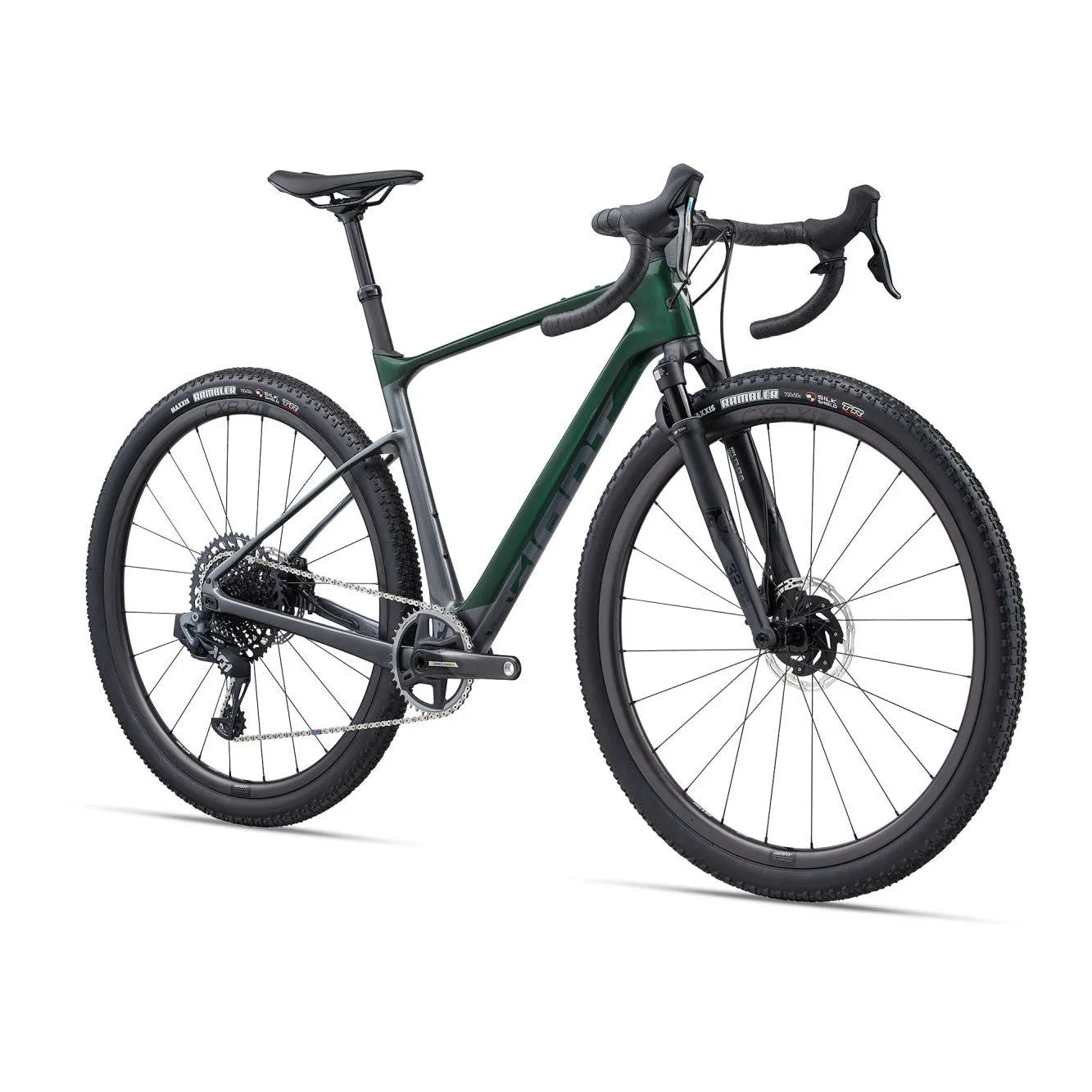

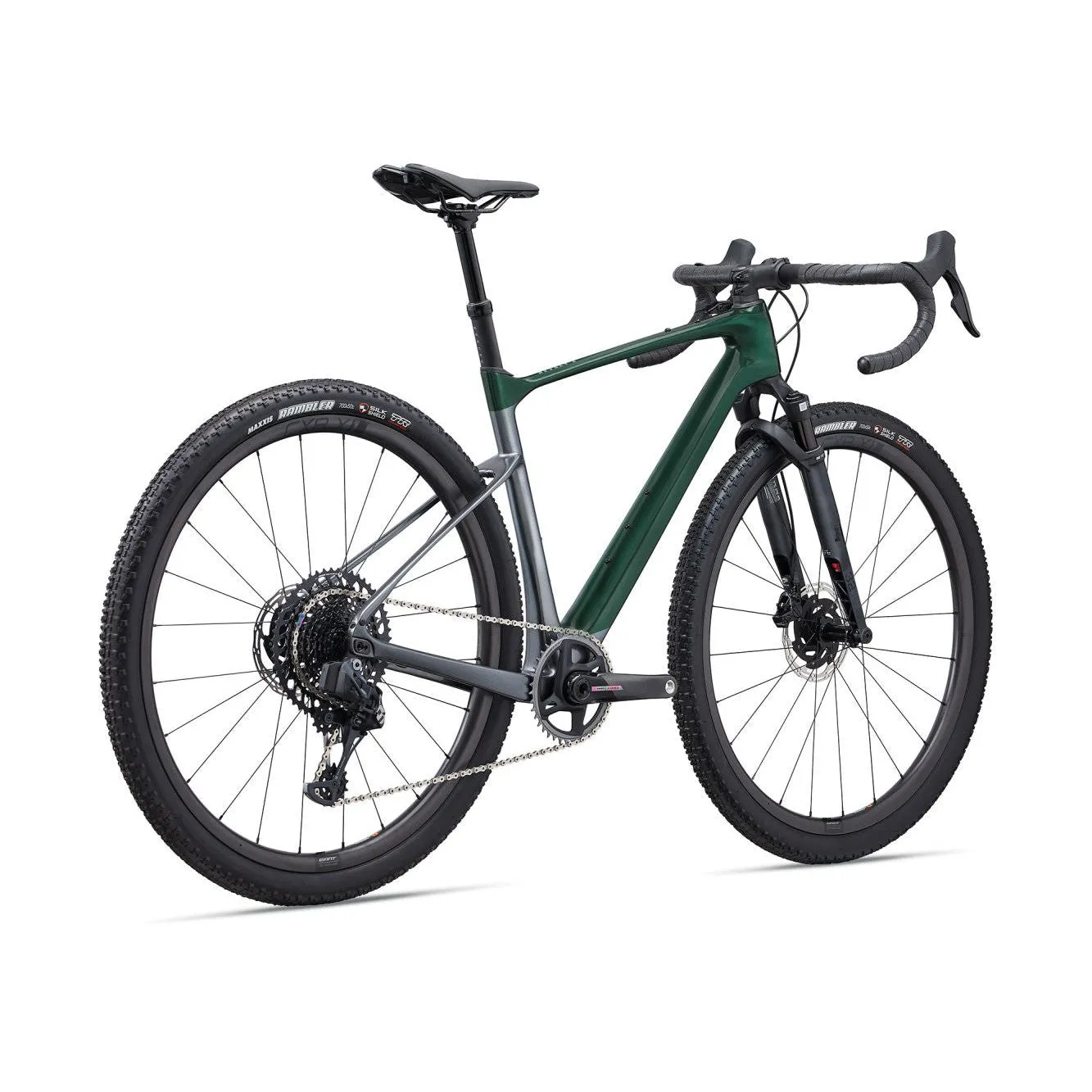

The Giant Revolt X Advanced Pro 0 Gravel Bike Your Ultimate Off-Road Adventure Companion!Get ready to tackle the wild unknown on your next gravel ride because with this composite gravel machine, you're in for a thrilling and unpredictable journey! From washboard descents to sketchy dirt trails, and gravel and rocks of all shapes and sizes, the Revolt X is your ticket to FUN-filled escapades.
Front Suspension Bliss:

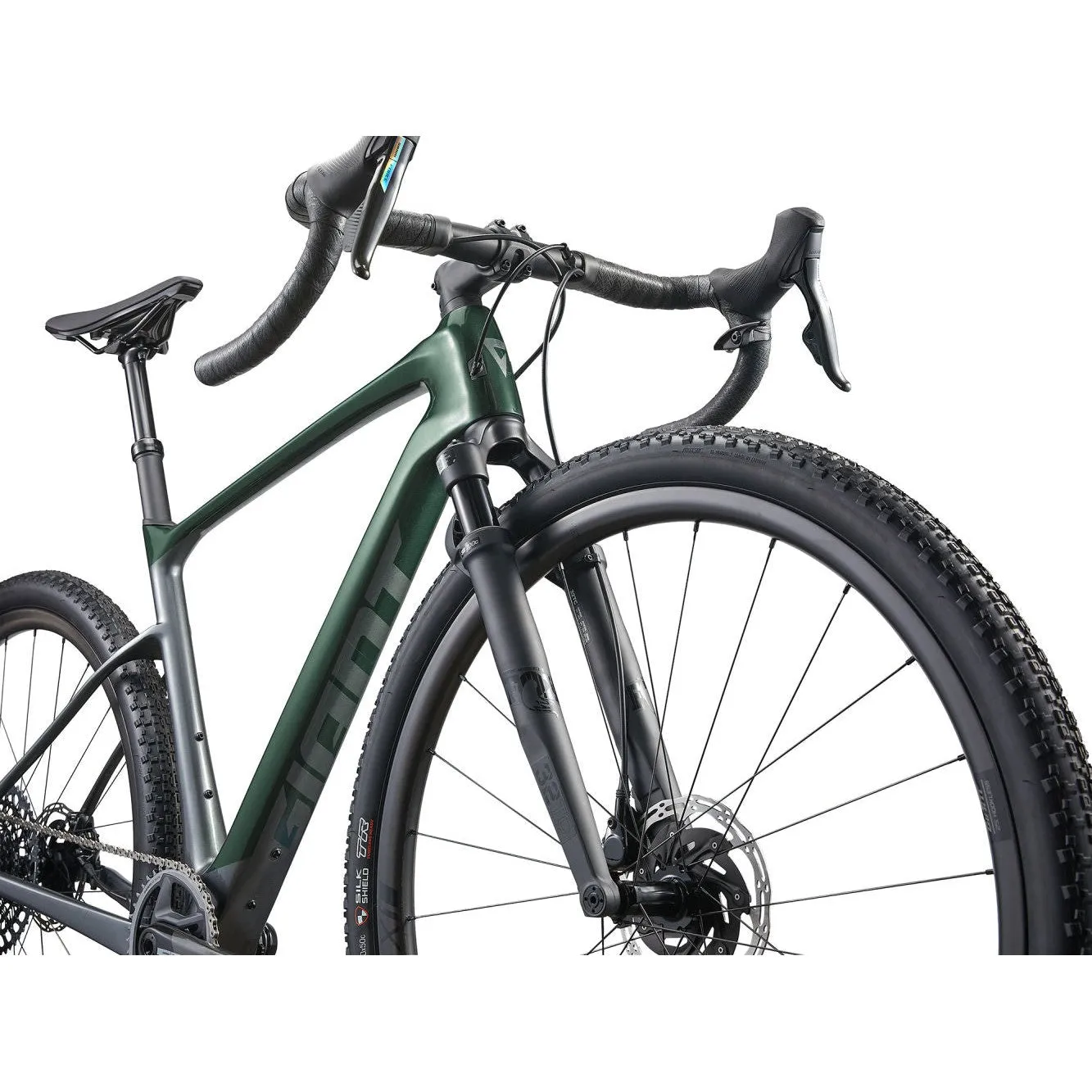

Equipped with 40mm of front suspension, this bike is your trusty partner for conquering rugged terrain. It effortlessly soaks up impacts, giving you a smoother and faster ride. Say goodbye to bone-jarring bumps!
Ride with Refined Comfort:
The Revolt X doesn't just stop at front suspension it's all about tuned compliance. Lowered seatstays with smaller diameter tubes take care of those road shocks and vibrations, ensuring you're in for a comfortable and enjoyable ride. The Contact SL XR D-Fuse handlebar adds even more compliance without sacrificing the stiffness you need for cornering, sprinting, or climbing. It's the best of both worlds!
Tailored to Your Needs:
Customize your ride with a flip chip on the rear dropout. Shorten the wheelbase for nimble handling or go for the long setting for rock-solid stability at high speeds. Plus, the long setting opens the door for larger diameter tires up to 53mm. It's adaptability at its finest!
Additional Perks:

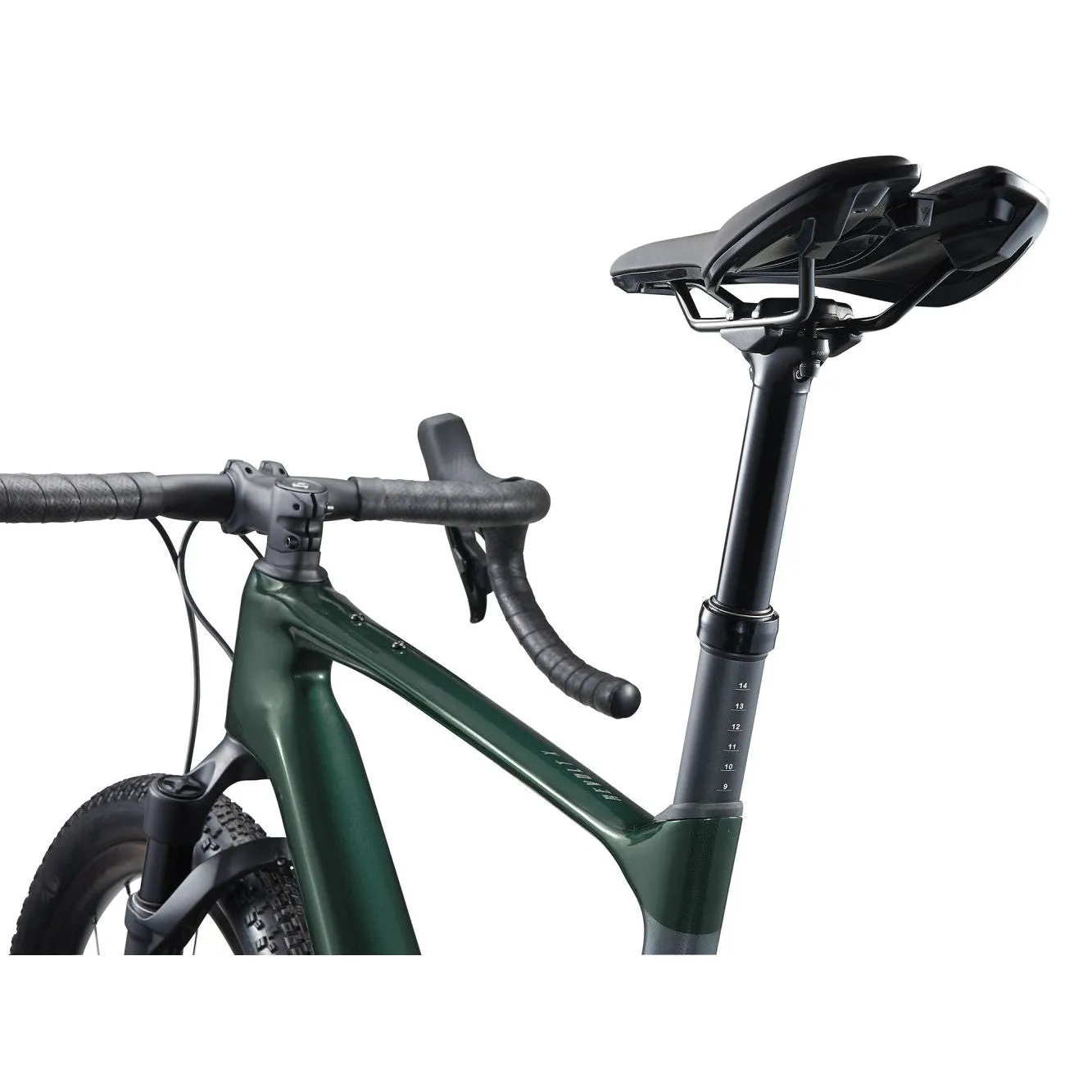

Want to take your adventure up a notch? Opt for the included dropper/suspension seatpost for enhanced control and comfort, letting you take on even more challenging terrain with ease.
In the world of gravel riding, the Revolt X Advanced Pro 0 Gravel Bike is your key to endless excitement and versatility. Get ready to tackle the trails with speed and control like never before!
Specifications
Sizes | XS, S, M, M/L, L, XL |
Colors | Kelp Forest/Charcoal/Chrome |
Frame | Advanced-grade composite, 12x142mm thru-axle, disc, flip chip dropout |
Fork | Fox 32 Float AX Performance Elite, 40mm, Fit 4 damper12x100mm thru-axle |
Shock | N/A |
Handlebar | Giant Contact SL XR D-Fuse, 31.8mm XS:44cm, S:44cm, M:46cm, M/L:46cm, L:48cm, XL:48cm |
Grips | Stratus Lite 3.0 |
Stem | Giant Contact, 8-degree XS:50mm, S:50mm, M:60mm, M/L:70mm, L:70mm, XL:80mm |
Seatpost | Post Moderne, dropper, 30.9mm with 30mm of suspension XS:365mm / 75mm drop S:415mm / 100mm drop |
Saddle | Giant Approach SL |
Pedals | |
Shifters | SRAM Force eTap AXS, 1x12 |
Front Derailleur | N/A |

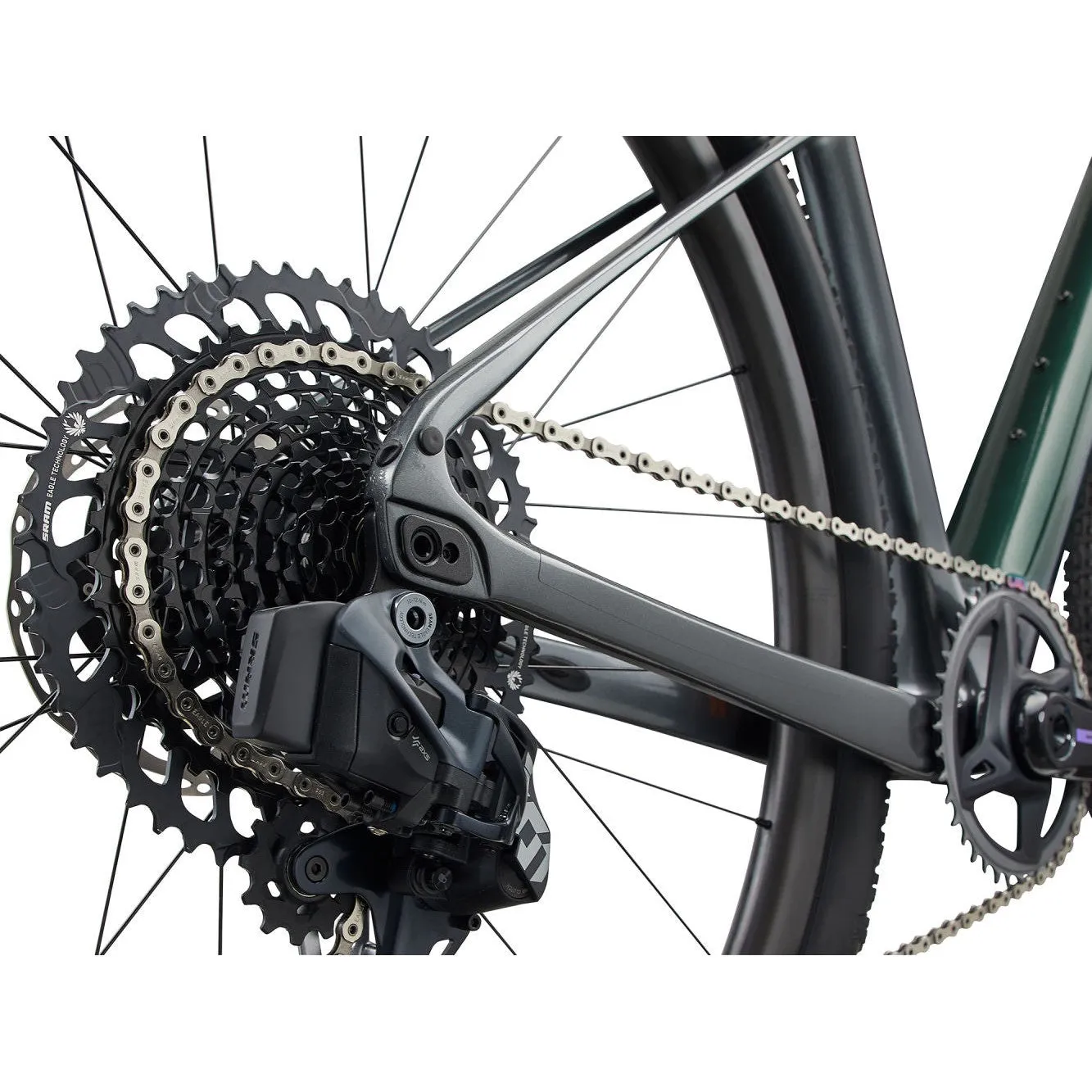

Rear Derailleur | SRAM X01 Eagle AXS |
Brakes | SRAM Force eTap AXS hydraulic, SRAM CenterLine rotors [F]160mm, [R]160mm |
Brake Levers | SRAM Force eTap AXS hydraulic |
Cassette | SRAM XG-1295, 12-speed, 10x52 |
Chain | SRAM X01 Eagle |
Crankset | SRAM Force D1 DUB, 40t XS:170mm, S:170mm, M:172.5mm, M/L:172.5mm, L:175mm, XL:175mm |
Bottom Bracket | SRAM DUB, press fit |
Rims | Giant CXR 1 X1 Carbon Disc WheelSystem, [F] 25.8mm, [R] 25.8mm |
Hubs | [F] Giant CXR X alloy, CenterLock, 12mm thru-axle, [R] Giant CXR X alloy, 60t ratchet driver, CenterLock, 12mm thru-axle |
Spokes | Sapim Laser |
Tires | Maxxis Rambler, 700x50c, tubeless |
Extras | tubeless prepared, 53mm max tire size in "long" flip chip position, 45mm max tire size in "short" flip chip position |
Weight | The most accurate way to determine any bikes weight is to have your localweigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality. |
Geometry
| X-Small | Small | Medium | Medium/Large | Large | X-Large | |
| SHORT|LONG | SHORT|LONG | SHORT|LONG | SHORT|LONG | SHORT|LONG | SHORT|LONG | |
| SEAT TUBE LENGTH(inch) | 16.9 | 17.7 | 18.5 | 19.3 | 20.1 | 20.9 |
| SEAT TUBE ANGLE | 74.0|73.9 | 73.5|73.4 | 73.5|73.4 | 73.0|72.9 | 73.0|72.9 | 73.0|72.9 |
| TOP TUBE LENGTH(inch) | 21.4 | 21.8 | 22 | 22.6 | 23 | 23.6 |
| HEAD TUBE LENGTH(inch) | 3.5 | 3.9 | 4.5 | 5.1 | 5.7 | 6.3 |
| HEAD TUBE ANGLE | 70.5|70.4 | 71.0|70.9 | 71.5|71.4 | 72.0|71.9 | 72.0|71.9 | 72.0|71.9 |
| FORK RAKE(inch) | 2 | 2 | 2 | 2 | 2 | 2 |
| TRAIL(inch) | 3.1|3.3 | 3|3.1 | 2.9|3 | 2.8|2.9 | 2.8|2.9 | 2.8|2.9 |
| WHEELBASE(inch) | 40.3|40.7 | 40.3|40.7 | 40.4|40.8 | 40.6|41 | 41|41.4 | 41.6|42 |
| CHAIN STAY LENGTH(inch) | 16.7|17.1 | 16.7|17.1 | 16.7|17.1 | 16.7|17.1 | 16.7|17.1 | 16.7|17.1 |
| BOTTOM BRACKET DROP(inch) | 2.7|2.7 | 2.7|2.7 | 2.7|2.7 | 2.7|2.7 | 2.7|2.7 | 2.7|2.7 |
| STACK(inch) | 21.6 | 22 | 22.7 | 23.3 | 23.9 | 24.4 |
| REACH(inch) | 15.2 | 15.2 | 15.3 | 15.5 | 15.7 | 16.1 |
| STAND OVER HEIGHT(inch) | 28.3|28.6 | 29|29.3 | 29.7|30 | 30.4|30.6 | 31.1|31.3 | 31.8|32 |
| HANDLEBAR WIDTH(inch) | 17.3 | 17.3 | 18.1 | 18.1 | 18.9 | 18.9 |
| STEM LENGTH(inch) | 2 | 2.4 | 2.8 | 3.1 | 3.1 | 3.5 |
| CRANK LENGTH(inch) | 6.7 | 6.7 | 6.8 | 6.8 | 6.9 | 6.9 |
| WHEEL SIZE | 700x 42C | 50C 700x42C | 50C 700x42C | 50C 700x42C | 50C 700x42C | 50C 700x42C |
