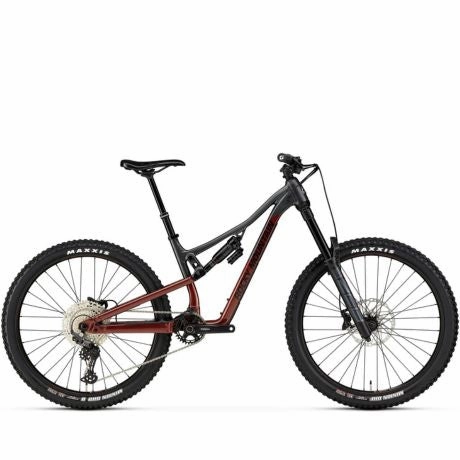

Rocky Mountain Altitude Alloy 30 - Unleash Your Inner Trail Warrior!
Meet the Rocky Mountain Altitude Alloy 30, the mountain bike that laughs in the face of gnarly trails and begs for more. If this bike were a person, it would be the kind of friend who always convinces you to take the more adventurous routebecause what's a ride without a little challenge, right?
Quick Glance - Altitude Alloy 30
- Terrain: Enduro
- FrameMaterial: Alloy
- Groupset: Shimano Deore - 12-Speed
- Wheels: WTB ST i30 TCS 2.0 Tubeless
- Weight: N/A
Shimano Deore Groupset
Equipped with the Shimano Deore 12-Speed groupset, this beast shifts gears smoother than you can say singletrack. Whether you're powering up a steep climb or blitzing down a rocky descent, Deore's reliability will have your back, making sure you never miss a beator a gear.
Lightweight and durable Alloy frame
Now, lets dive into the heart of this trail-devouring machine: the alloy frame. Crafted from super-tough yet lightweight aluminum, this frame is built to take a beating without weighing you down. Its like the best kind of body armorstrong where it counts but light enough to keep you nimble on the trail. Plus, the frames geometry is dialed in for aggressive riding, so you can charge into the steepest descents and tightest corners with total confidence.
Super powered braking
Speaking of charging, the Shimano MT4120 on the Altitude Alloy 30 is nothing short of heroic. With powerful hydraulic disc brakes, you'll have all the stopping power you need to keep things in control, even when youre flying down a trail at warp speed. Its like having a parachute that deploys instantlyexcept way cooler and with less chance of getting tangled in a tree. When the trail gets dicey, these brakes have got your back, ensuring you can stop on a dime and navigate tricky sections like a pro.
With the Rocky Mountain Altitude Alloy 30, every ride becomes an adventure waiting to happen. The alloy frame, unbeatable braking system, and feather-light wheels come together to create a bike thats ready to take on any trail, any day. Whether you're bombing down a hill with a grin plastered on your face or tackling technical sections with the precision of a surgeon, the Rocky Mountain Altitude Alloy 30 is your trusty steed, ready to take on whatever adventure you dream up next.
So, if you're looking for a bike thats as fearless as you are, look no further. The Rocky Mountain Altitude Alloy 30 is here to remind you that the best trails are the ones that leave you breathlessand craving just one more ride.
Specifications
Description | |
Frame Sizes | SM-MD-LG-XL |
Frame | FORM Alloy | Full Sealed Cartridge Bearings | Press Fit BB | Internal Cable Routing | 2-Bolt ISCG05 Tabs | RIDE-9 Adjustable Geometry | 2 Position Axle | 160mm Travel. FORM Alloy Rear Triangle |
Fork | RockShox Zeb Select RC 170mm | 27.5 = 38mm Offset | 29 = 44mm Offset |
Rear Shock | RockShox Super Deluxe Select | Sealed Bearing Eyelet | 25x8mm F Hardware | SM = 210x55mm | MD - LG - XL = 230x60mm |
Handlebars | Rocky Mountain AM | 780mmWidth | 25mm Rise | 9 Backsweep | 5 Upsweep | 31.8 Clamp |
Grips | ODI Elite Pro Lock On |
Stem | Rocky Mountain 31.8 AM | 5 Rise | All Sizes = 40mm |
Seatpost | Rocky Mountain Toonie Drop Composite 30.9mm | SM = 125mm | MD = 150mm | LG - XL = 170mm |
Saddle | WTB Volt 142 |
Shifters | Shimano Deore - 12-Speed |
Rear Derailleur | Shimano Deore - 12-Speed |
Brakes | Shimano MT4120 4 Piston | Resin Pads | F:Shimano RT64 203mm | R:Shimano RT64 180mm |
Cassette | Shimano Deore 10-51T - 12-Speed |
Cranks & Chainring | Shimano Deore | 32T | 24mm Spindle | 170mm Crank Length |
Bottom Bracket | Shimano M6100 |
Headset | FSA Orbit NO.57E | Sealed 36x45 Bearings | 30.2mm x 41mm x 7.1mm Upper | 40mm x 51.8mm x 7.5mm Lower | 1.5"" Crown Race |
Front Hub | Rocky Mountain Sealed Boost 15mm |
Rear Hub | Novatec D462 Sealed Boost 148mm |
Spokes | 2.0 Stainless |
Tyres | Front: Maxxis Minion DHF 2.5 WT EXO Tubeless Ready // Rear: Maxxis Minion DHR II 2.4 WT EXO Tubeless Ready |
Rims | WTB ST i30 TCS 2.0 Tubeless | 32H | Tubeless Ready - Tape / Valves Incl |
Weight | N/A |
*Specifications subject to change
Geometry
What size do I need?
Unsure about the ideal bike size for you? We understand finding the perfect fit can be challenging, especially with high-performance bikes. But don't worry, our knowledgeable retailers are here to assist. Whether you prioritize comfort, performance, or both, they will steer you towards the correct size based on your objectives and riding preferences. Don't leave it to chance visit our store or give us a call to begin a discussion and ensure that your new bike is tailored to your needs.
SM | MD | MD | LG | XL | |
Wheels | 27.5" | 27.5" | 29" | 29" | 29" |
Stack | 591 | 601 | 616 | 629 | 643 |
Reach | 437 | 461 | 461 | 486 | 516 |
Stack/Reach Ratio | 1.35 | 1.30 | 1.34 | 1.29 | 1.25 |
Top Tube Length | 577 | 605 | 608 | 637 | 670 |
Seat Tube Length | 380 | 420 | 420 | 445 | 480 |
Seat Tube Angle | 76.5 | 76.5 | 76.5 | 76.5 | 76.5 |
Head Tube Length | 100 | 110 | 95 | 110 | 125 |
Head Tube Angle | 66.5 | 65.5 | 65.5 | 65.5 | 65.5 |
BB Drop | 4 | 5 | 19 | 19 | 19 |
BB Height | 4351 | 350 | 355 | 355 | 355 |
Front Center | 744 | 772 | 781 | 813 | 849 |
Chainstay Length | 425 | 426 | 436 | 436 | 436 |
Wheelbase | 1169 | 1198 | 1216 | 1248 | 1284 |
Rake | 36 | 36 | 43 | 44 | 44 |
Trail | 122 | 122 | 123 | 122 | 122 |
Standover Height | 774 | 812 | 819 | 819 | 819 |
