Description
The Mountain Bikers eMTB

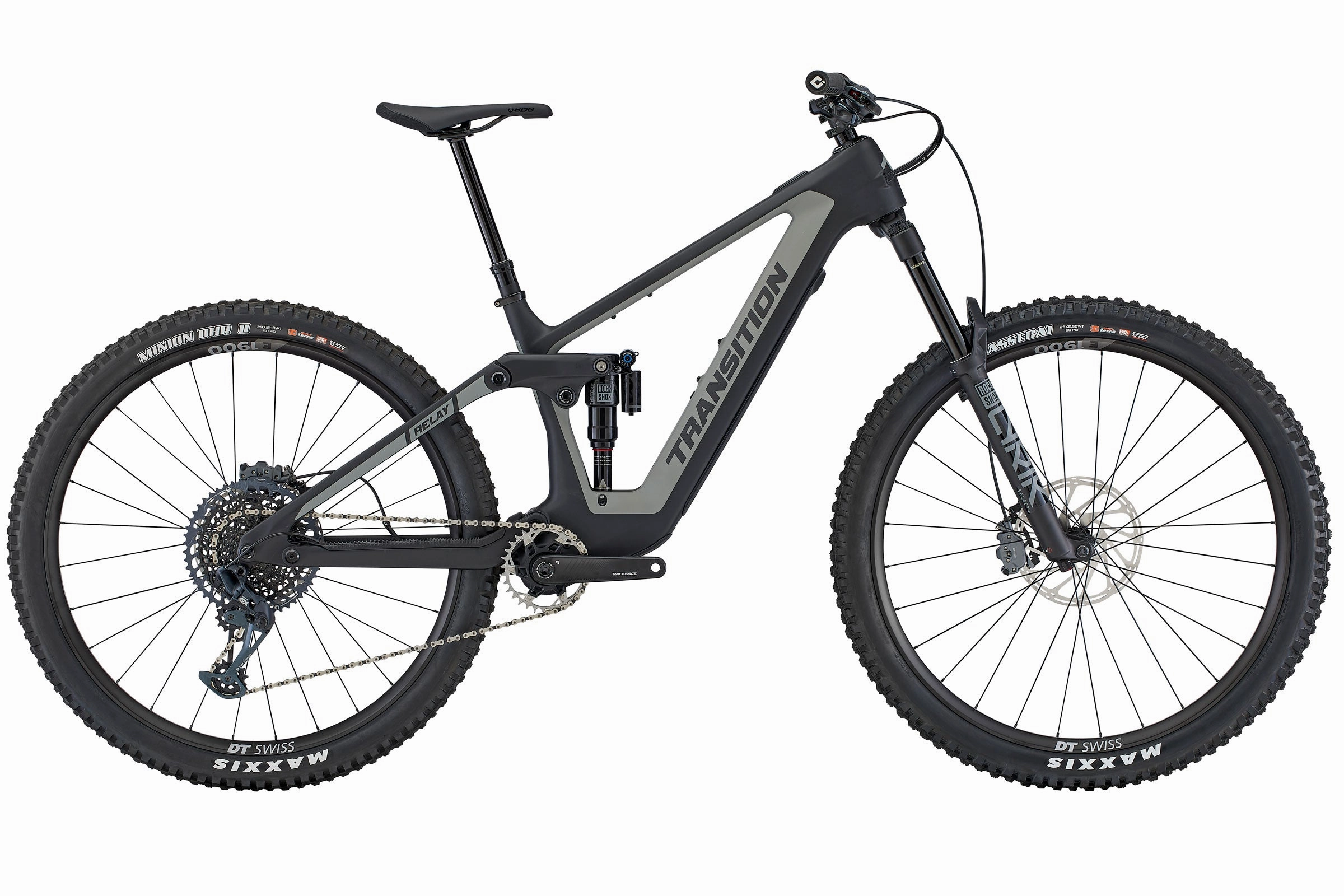

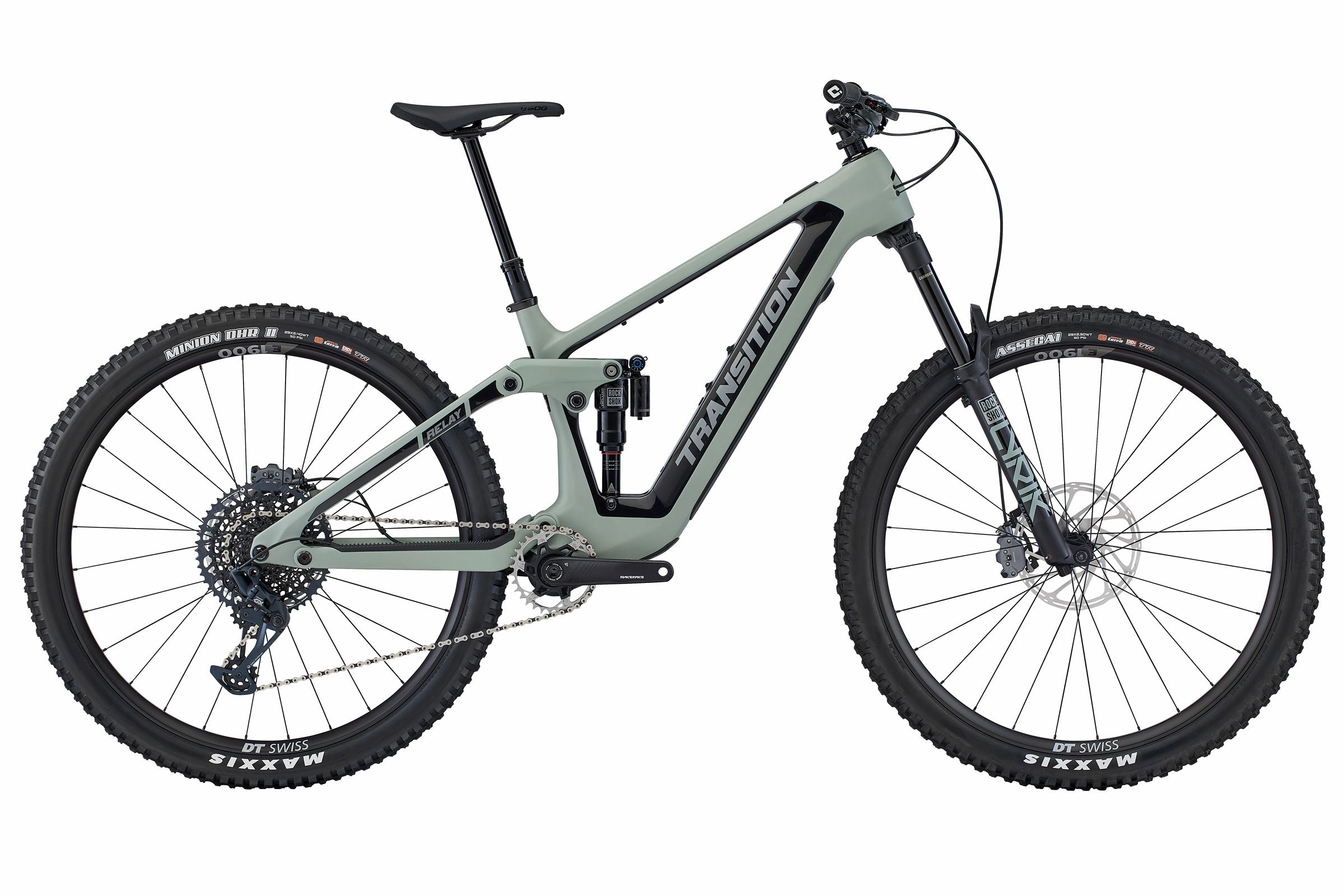

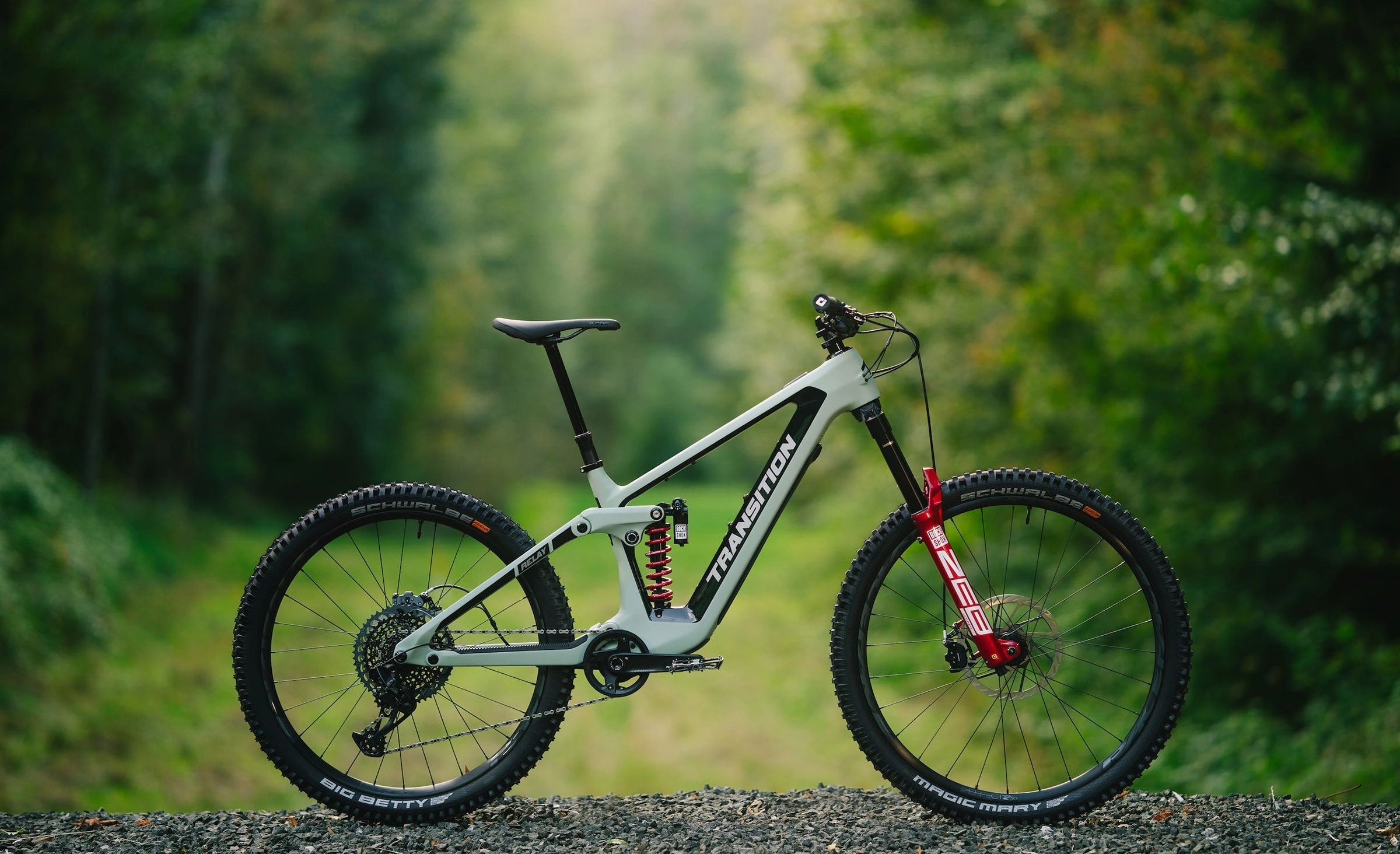

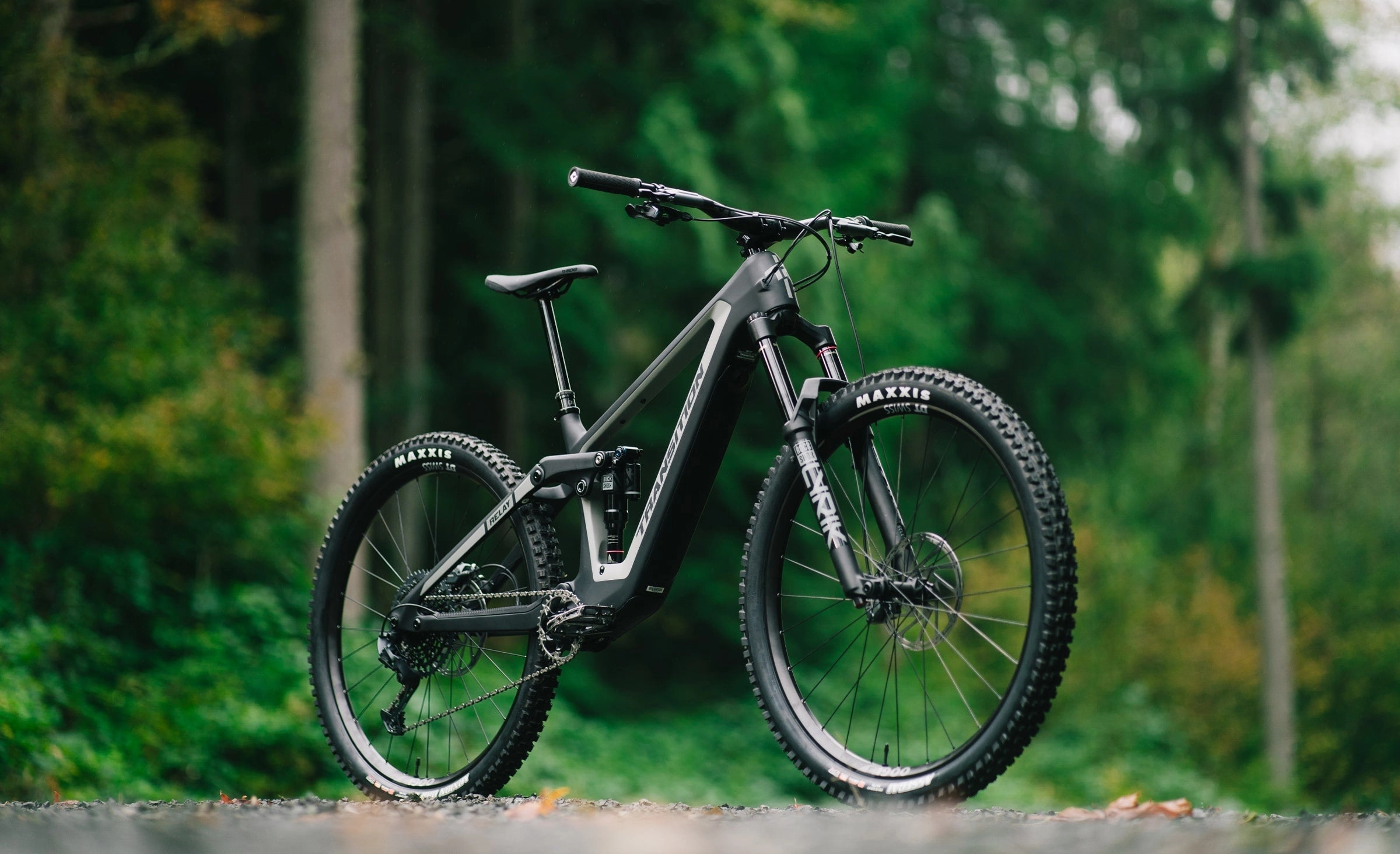

Living in uncharted territory, the Relay is a lightweight, long travel, modular mountain bike.
We have always wanted a bike that could provide both an electric and non-electric experience in one chassis. The Relay is light, efficient, and quiet. This provides a more intuitive and natural feel on trail than many would expect from an eMTB. The Relay is here and ready to meet all of your mountain biking needs. Going for a rip with friends on eMTB's? Power it up and head out. Going for a rip with some friends on mountain bikes? Simply remove the battery and hit the trail with no tools required. The Relay does it all.
Living in uncharted territory, the Relay is a lightweight, long travel, modular mountain bike.
We have always wanted a bike that could provide both an electric and non-electric experience in one chassis. The Relay is light, efficient, and quiet. This provides a more intuitive and natural feel on trail than many would expect from an eMTB. The Relay is here and ready to meet all of your mountain biking needs. Going for a rip with friends on eMTB's? Power it up and head out. Going for a rip with some friends on mountain bikes? Simply remove the battery and hit the trail with no tools required. The Relay does it all.
Specification
| COLOUR OPTIONS |
|
| ||||||||
| FRAME | Relay Carbon 160mm | Relay Carbon 160mm | ||||||||
| WHEEL SIZE | 29" (X-Small 27.5") | 29" (X-Small 27.5") | ||||||||
| DRIVE UNIT | Fazua Ride 60 | Fazua Ride 60 | ||||||||
| BATTERY | Fazua Energy 430 Take Out | Fazua Energy 430 Take Out | ||||||||
| DISPLAY | Fazua Top Tube LED Hub | Fazua Top Tube LED Hub | ||||||||
| ASSIST SWITCH | Fazua Ring Control | Fazua Ring Control | ||||||||
| REAR SHOCK | RockShox Super Deluxe Select (205x60mm) | RockShox Super Deluxe Ultimate (205x60mm) | ||||||||
| FORK | RockShox Lyrik Select (160mm) | RockShox Lyrik Ultimate (160mm) | ||||||||
| HEADSET | FSA No.55R | FSA No.55R | ||||||||
| STEM | ANVL Swage (40mm) | ANVL Swage (40mm) | ||||||||
| HANDLEBAR | ANVL Mandrel Alloy 35 XS/SM(800x20mm) MD/LG(800x30mm) XL/XXL(800x40mm) | OneUp Carbon XS/SM(800x20) MD/LG/XL/XXL(800x35) | ||||||||
| GRIPS | ODI Elite Flow Lock-On | ODI Elite Flow Lock-On | ||||||||
| SADDLE | SDG Bel Air 3 LUX | SDG Bel Air 3 LUX | ||||||||
| SEATPOST | OneUp Dropper Post XS(120mm) SM(150mm) MD(190mm) LG(210mm) XL/XXL(240mm) | OneUp Dropper Post XS(120mm) SM(150mm) MD(190mm) LG(210mm) XL/XXL(240mm) | ||||||||
| BRAKES | SRAM Maven Bronze | SRAM Maven Silver | ||||||||
| ROTORS | SRAM Centerline (200mm) | SRAM HS2 (200mm) | ||||||||
| SHIFTER | SRAM GX Eagle Single Click | SRAM POD Ultimate Bridge MMX | ||||||||
| DERAILLEUR | SRAM GX Eagle | SRAM XO AXS Eagle Transmission | ||||||||
| CASSETTE | SRAM XG 1275 (10-52t) | SRAM XS 1295 T-Type (10-52t) | ||||||||
| CHAIN | SRAM GX Eagle | SRAM XO Eagle Transmission | ||||||||
| CRANK | RaceFace Aeffect ETOR (165mm, X-Small 160mm) | RaceFace Era Carbon ETOR (165mm, X-Small 160mm) | ||||||||
| CHAINRING | SRAM XX Direct Mount (32t) | SRAM XX Direct Mount (32t) | ||||||||
| RIMS | DT Swiss E 1900 Spline 30 | DT Swiss XM 481 | ||||||||
| SPOKES | DT Swiss Champion | DT Swiss Competition | ||||||||
| HUBS | DT Swiss 370 Ratchet LN | DT Swiss 350 Classic DEG | ||||||||
| TIRE/FRONT | Maxxis Assegai 3C EXO (2.5) | Maxxis Assegai 3C EXO (2.5) | ||||||||
| TIRE/REAR | Maxxis Minion DHRII 3C EXO (2.4) | Maxxis Minion DHRII 3C EXO (2.4) | ||||||||
| INCLUDED | Fazua Charger, Tubeless Valves & Sealant | Fazua Charger, SRAM AXS Battery Charger Tubeless Valves & Sealant | ||||||||
| WEIGHT | 43.10 lbs / 19.55 kg (Size MD, Including Battery) 38.10 lbs / 17.28 kg (Size MD, Excluding Battery) | TBD |
Geometry
| XS | SM | MD | LG | XL | 2XL | ||
| A.REACH | 410/405 | 430/422 | 460/452 | 485/477 | 510/502 | 535/527 | |
| B.STACK (CARBON) | 590/588 | 615/615 | 628/634 | 637/643 | 646/652 | 655/661 | |
| B.STACK (ALLOY) | 595/593 | 620/620 | 628/634 | 637/643 | 646/652 | 655/661 | |
| C.EFFECTIVE TT LENGTH | 523/532 | 553/564 | 586/597 | 614/631 | 642/665 | 671/696 | |
| D.SEAT TUBE LENGTH (CARBON) | 380 | 390 | 410 | 430 | 460 | 490 | |
| D.SEAT TUBE LENGTH (ALLOY) | 410 | 410 | 410 | 430 | 460 | 490 | |
| E.EFFECTIVE ST ANGLE | 79.7/79.3 | 79.1/78.4 | 78.4/77.7 | 77.8/77.1 | 77.3/76.6 | 77/76.3 | |
| SADDLE HEIGHT FOR EFFECTIVE ST ANGLE | 560 | 600 | 660 | 720 | 780 | 820 | |
| ACTUAL ST ANGLE | 71/70.6 | 71/70.3 | 71/70.3 | 71/70.3 | 71/70.3 | 71/70.4 | |
| SEAT TUBE OFFSET AT BB | 90 | 90 | 90 | 90 | 90 | 90 | |
| F.HEAD TUBE LENGTH (CARBON) | 100 | 100 | 115 | 125 | 135 | 145 | |
| F.HEAD TUBE LENGTH (ALLOY) | 105 | 105 | 115 | 125 | 135 | 145 | |
| G.HEAD TUBE ANGLE | 64/63.6 | 64/63.3 | 64/63.3 | 64/63.3 | 64/63.4 | 64/63.4 | |
| H.CHAINSTAY LENGTH | 436 | 442/440 | 442/440 | 448/446 | 448/446 | 448/446 | |
| I.WHEELBASE | 1167/1172 | 1208/1211 | 1244/1247 | 1280/1282 | 1309/1312 | 1338/1341 | |
| J.BOTTOM BRACKET DROP | 15/11 | 25 | 25 | 25 | 25 | 25 | |
| K.ESTIMATED BB HEIGHT | 340/343 | 350 | 350 | 350 | 350 | 350 | |
