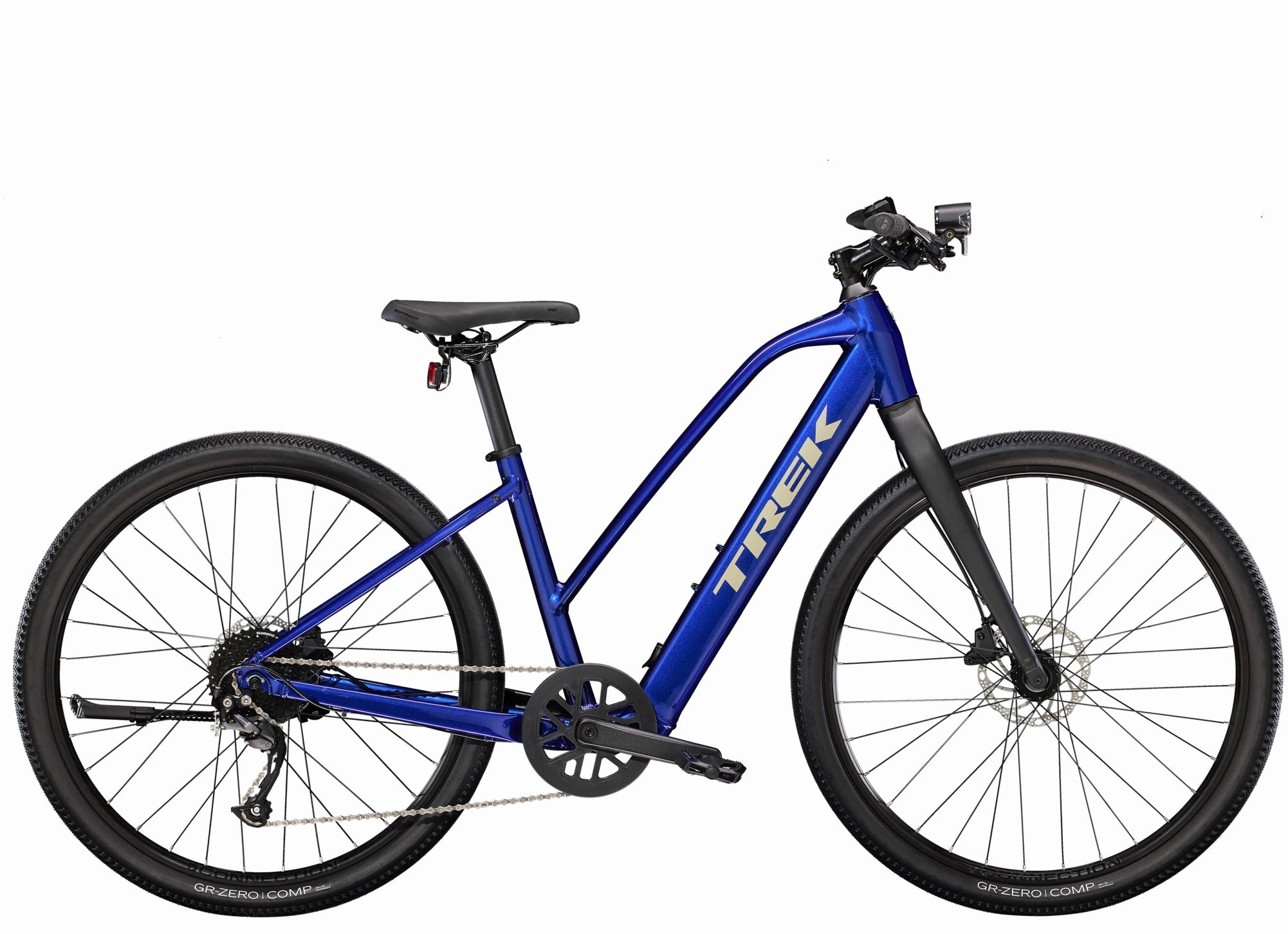

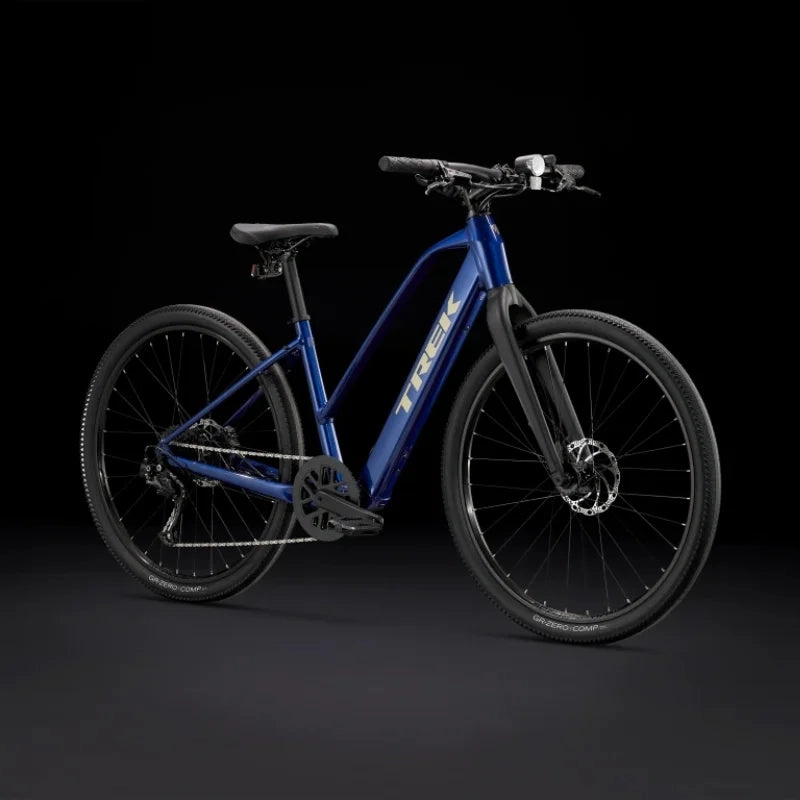

Trek Dual Sport 2 Stagger - Hex Blue: Unleash Your Adventure Spirit
Experience the thrill of exploration with the Trek Dual Sport 2 Stagger, a lightweight and versatile hybrid electric bike designed to conquer both city streets and light trails. Featuring an intuitive pedal-assist system and robust components, this bike offers a seamless and exhilarating ride experience on varied terrain, while its sleek design and convenient features make it perfect for everyday errands and weekend adventures.
Perfect For: Ideal for riders seeking a lightweight and user-friendly electric bike that provides a reliable boost for daily commuting and weekend excursions alike. Whether navigating urban landscapes or exploring nature trails, the Dual Sport 2 Stagger delivers confidence and comfort, allowing you to expand your horizons with ease.

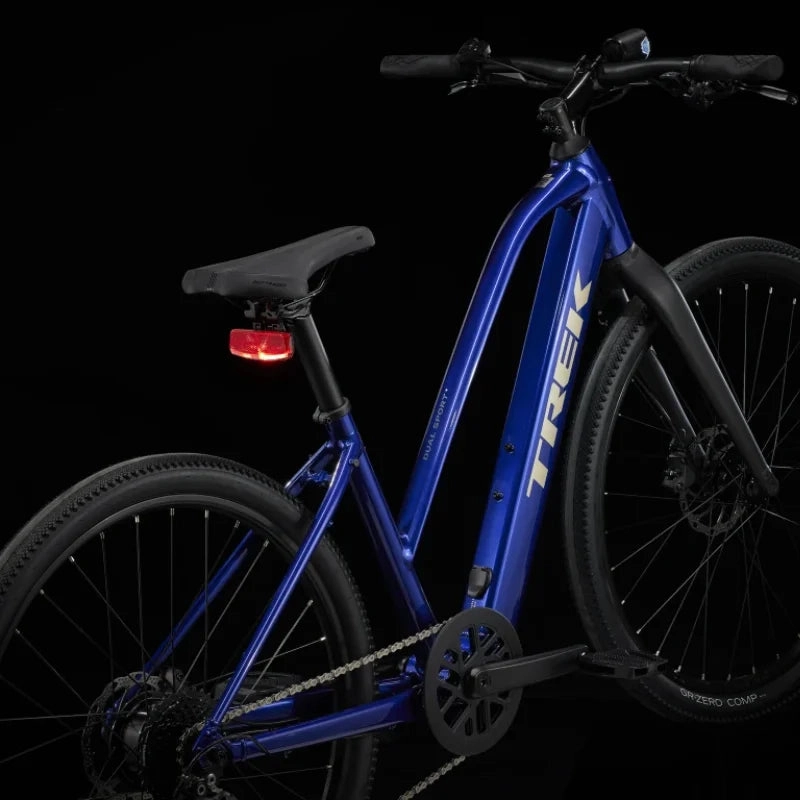

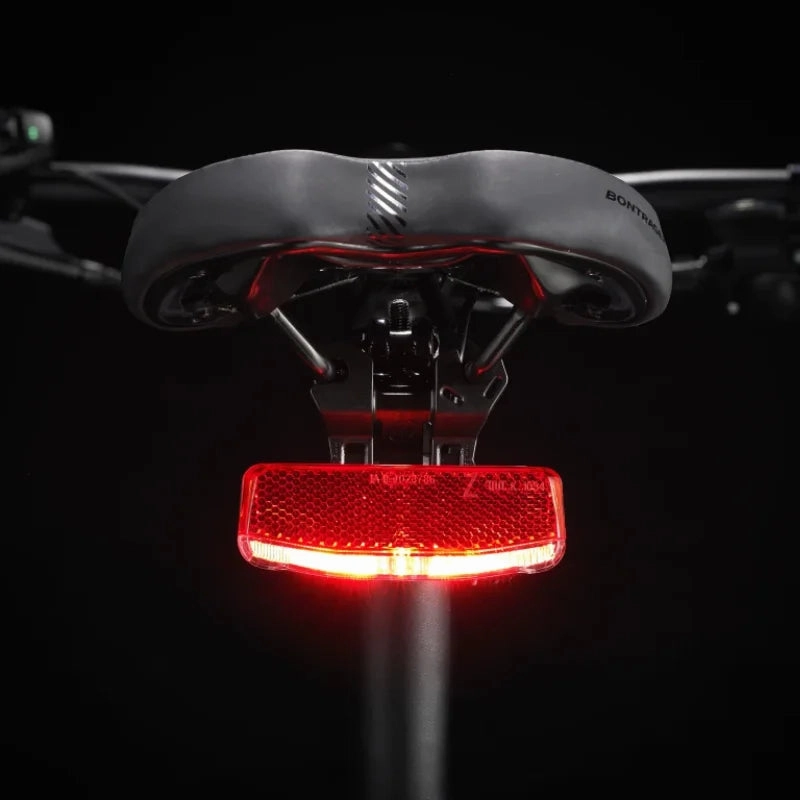

Cutting-Edge Technology: Crafted from a lightweight aluminum frame with a staggered design for easy mounting and dismounting, the Dual Sport 2 Stagger features Trek's proprietary pedal-assist system powered by a 250W hub motor and a 250Wh battery. Equipped with stiff 650b wheels and wide 50c tires, hydraulic disc brakes, and a reliable 9-speed Shimano drivetrain, it offers exceptional capability and comfort on diverse terrain. Integrated lights, powered by the battery, ensure visibility in low-light conditions, while a kickstand adds convenience during stops.
Final Verdict: With the Dual Sport 2 Stagger, you'll enjoy the perfect blend of versatility, performance, and convenience. Whether navigating city streets or exploring off-road trails, its lightweight design, intuitive pedal-assist system, and reliable components provide an unmatched riding experience, allowing you to tackle any adventure with confidence.
Why It's Your Perfect Match:
- Lightweight design makes maneuvering and carrying the bike a breeze, enhancing convenience for daily use.
- Trek's pedal-assist system offers a natural ride feel, with a simple LED remote indicating your assist setting for effortless control.
- Stiff wheels and wide tires provide terrain-smoothing comfort and confidence, akin to a suspension fork but without the added weight.

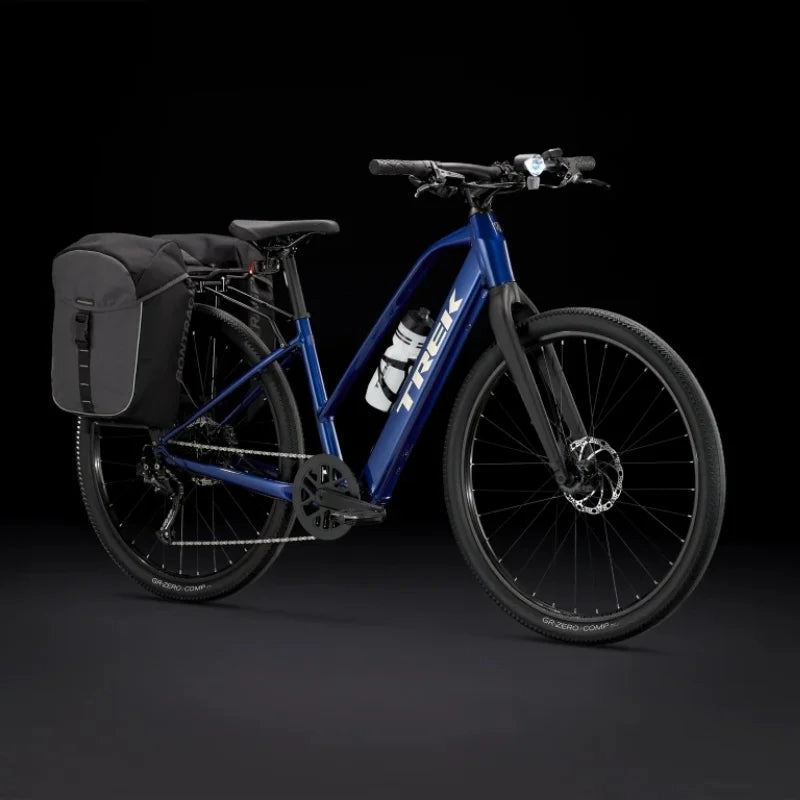

- Easy accessorization with mudguards and a rear rack allows you to carry all your essentials for extended rides or errands.
- Extend your range with the optional 250Wh plug-and-play Range Extender battery, doubling your riding distance and further expanding your adventure possibilities.
Specification
Trek Dual Sport 2 Specification
FRAMESET
| Frame | Lightweight aluminium frame with integrated cables and integrated battery, water bottle mounts |

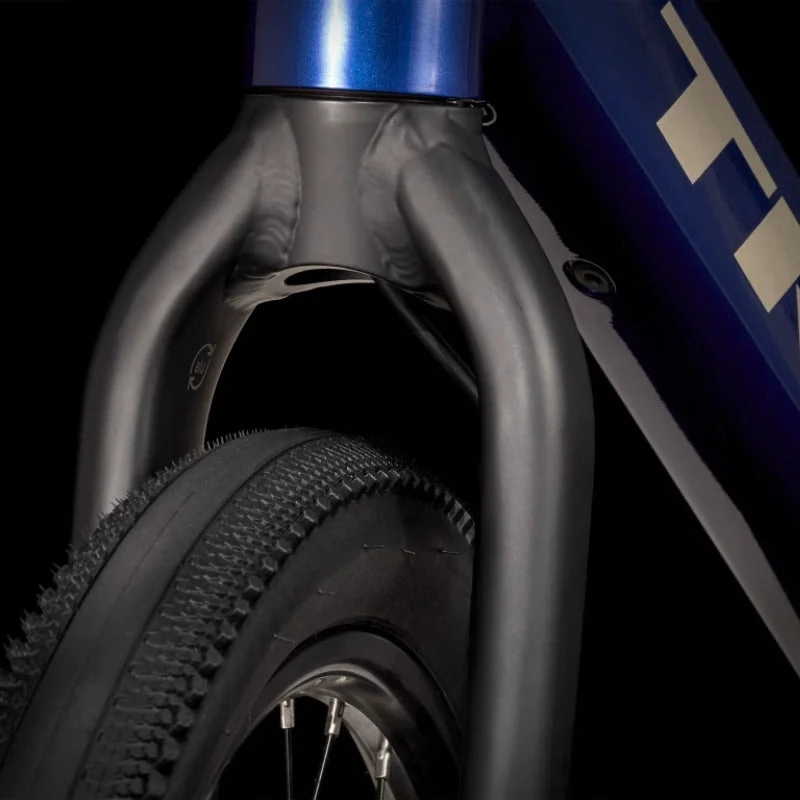

| Fork | DS alloy, internal brake routing, mudguard mounts, rack mounts, ThruSkew 5 mm bolt-on skewer |
WHEEL
| Wheel Front | Formula DC-20, alloy, 6-bolt, 5x100 mm QR |
| Skewer Front | 135x5 mm bolt-on |

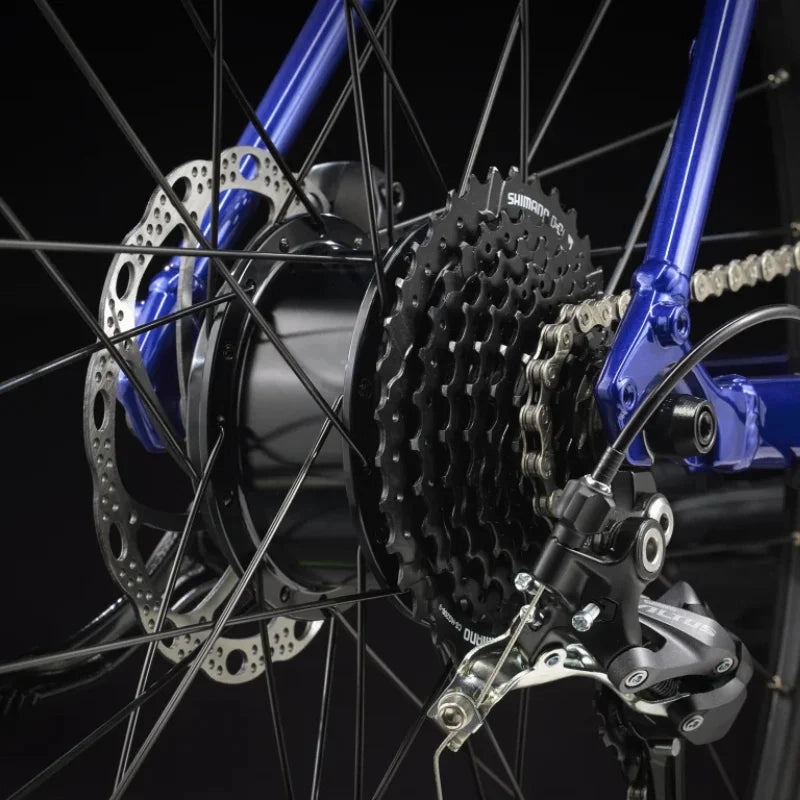

| Hub Rear | Hyena hub driver motor, 40 Nm, 250 W |
| Rim | Bontrager Connection, double-wall, 32-hole, 20 mm width, Presta valve |
| Spokes | 14 g stainless steel, black |
| Tyre | Bontrager GR0 Comp, wire bead, 60 tpi, 650x50 mm |
| Max tyre size | 27.5x2.00" with or without mudguards |
E-SYSTEM
| Battery | 250 Wh, integrated in down tube |

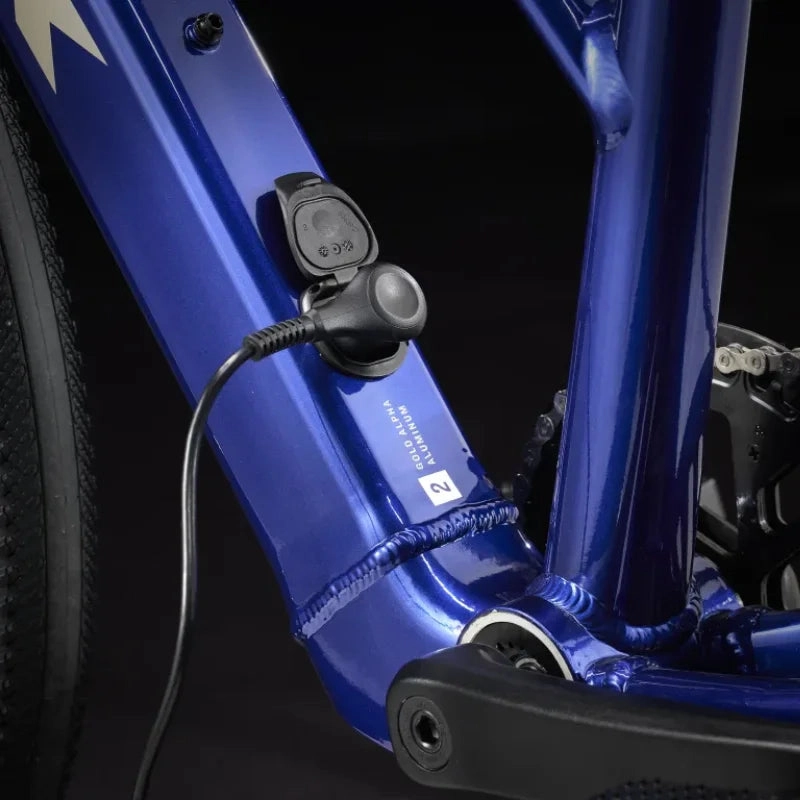

| Charger | 2A, 42V, output, 100V-240V AC input |
| Computer | LED display |
DRIVETRAIN
| Shifter | Shimano Altus M2010, 9-speed |
| Rear Derailleur | Shimano Altus M2000, long cage |
| Crank | Size: S, M Size: L |
| Bottom Bracket | Torque sensor, threaded, 122.5 mm spindle |
| Cassette | Shimano HG200, 11-36, 9-speed |
| Chain | KMC X9 |
| Pedal | Bontrager City pedals |
| Max. Chainring Size | 1x: 42T |
COMPONENTS
| Saddle | Bontrager Sport |
| Seatpost | Size: S, M Size: L |

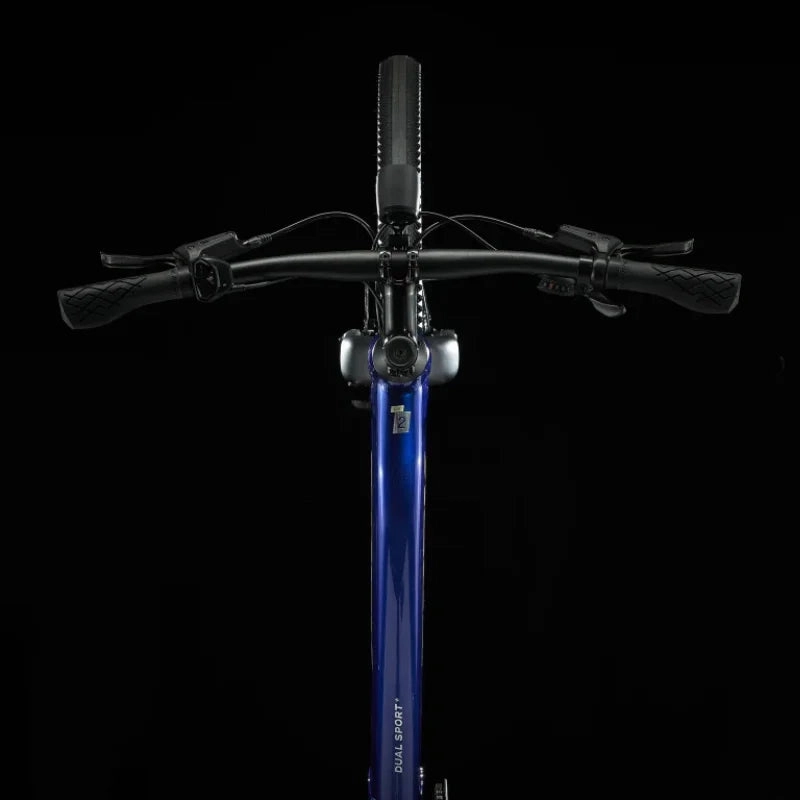

| Handlebar | Size: S, M Size: L |
| Grips | Bontrager XR Endurance Comp, lock-on |
| Stem | Size: S, M Size: L |

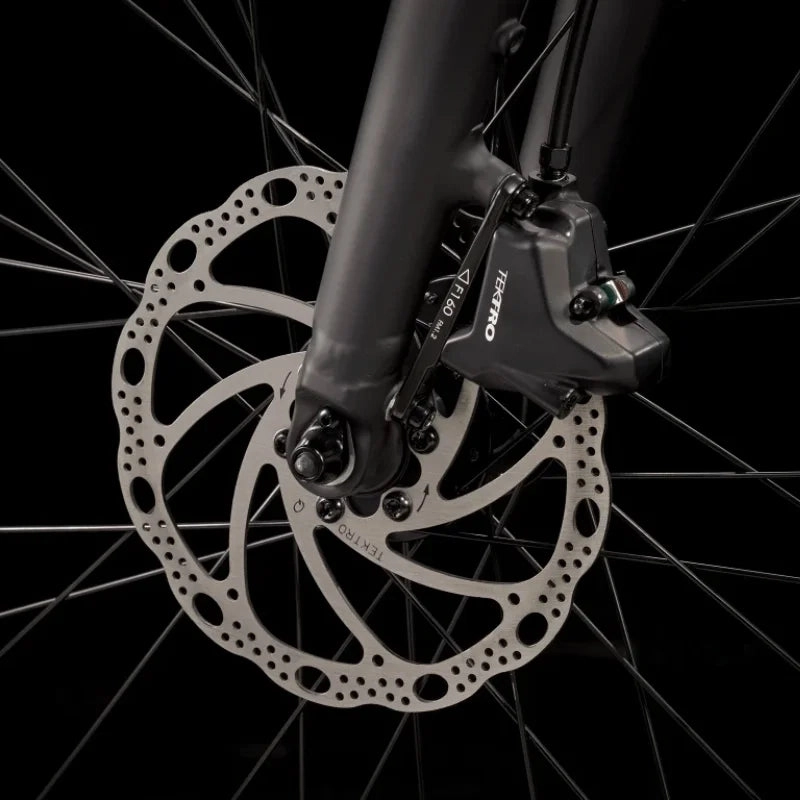

| Brake | Shimano hydraulic disc, MT200 lever, UR300 calliper |
| Brake Rotor | Shimano RT26, 6-bolt,160 mm |
ACCESSORIES

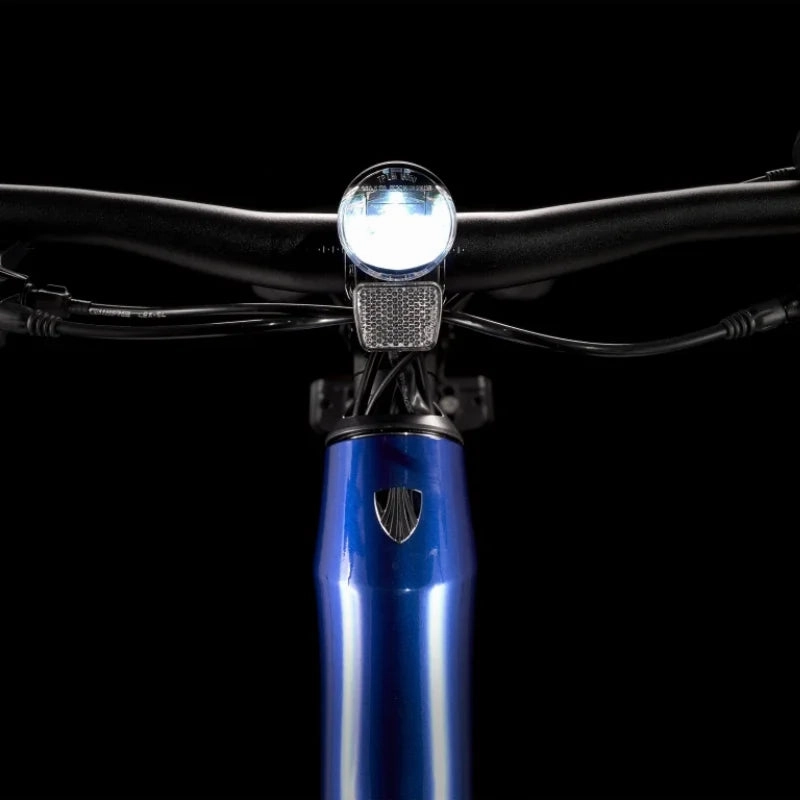

| Light | Size: S, M, L Size: S, M, L |
| Kickstand | Alloy, rear mount. |
WEIGHT
| Weight | M - 17.28 kg / 38.1 lbs |
| Weight Limit | This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lb). |
Sizing
Trek Dual Sport 2 Sizing
| Size | Rider Height | Inseam |
| S | 155 - 165 cm (5'1" - 5'5") | 72 - 78 cm (28" - 31") |
| M | 165 - 175 (5'5" - 5'9") | 77 - 83 cm (30" - 33") |
| L | 175 - 186 cm (5'9" - 6'1") | 82 - 88 cm (32" - 35") |
Geometry
Trek Dual Sport 2 Geometry
All measurements are provided in cm unless otherwise stated.
SIZING TABLE
| Frame Size Number | 45 | 50 | 55 |
| Frame Size Letter | S | M | L |
| Wheel Size | 27.5" | 27.5" | 27.5" |
| A - Seat Tube | 40.8 | 46.3 | 50.7 |
| B - Seat Tube Angle | 73.5 | 73.0 | 73.0 |
| C - Head Tube Length | 15.5 | 17.0 | 20.0 |
| D - Head Angle | 70.0 | 70.5 | 71.0 |
| E - Effective Top Tube | 56.9 | 57.4 | 59.2 |
| F - Bottom Bracket Height | 27.8 | 27.8 | 27.8 |
| G - Bottom Bracket Drop | 7.0 | 7.0 | 7.0 |
| H - Chainstay Length | 46.8 | 46.8 | 46.8 |
| I - Offset | 5.0 | 5.0 | 5.0 |
| J - Trail | 7.6 | 7.3 | 6.9 |
| K - Wheelbase | 109.2 | 109.5 | 110.9 |
| L - Standover | 65.5 | 67.2 | 69.3 |
| M - Frame Reach | 38.2 | 38.5 | 39.3 |
| N - Frame Stack | 60.4 | 62.0 | 65.0 |
