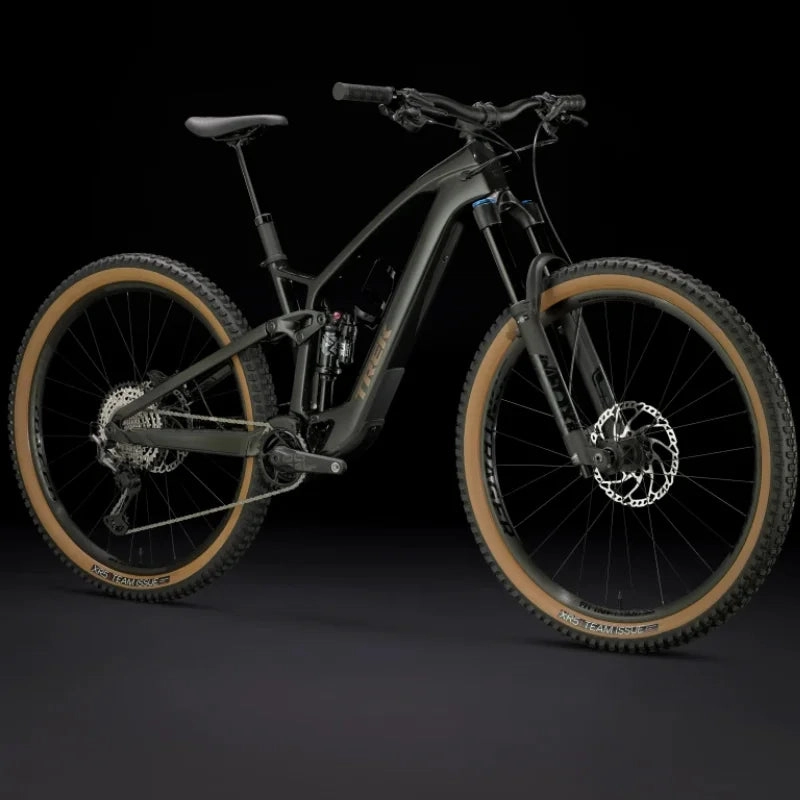

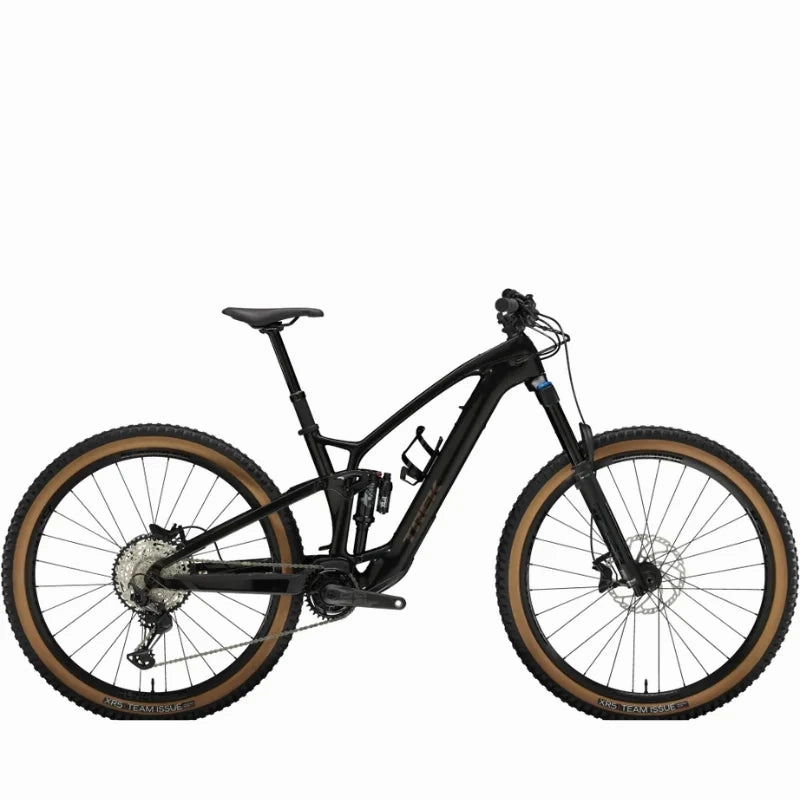

Fuel EXe 9.7: Unleashing the Spirit of E-Mountain Biking
Experience the thrill of e-mountain biking like never before with the Fuel EXe 9.7, a game-changer that seamlessly integrates cutting-edge technology with a lively and dynamic ride feel. This bike blends the playfulness of a traditional mountain bike with the added power of pedal assist, allowing you to conquer climbs with ease and enjoy a responsive, nimble performance on challenging descents. Crafted with a blend of premium components, including an enhanced suspension package and lightweight carbon frame, the Fuel EXe 9.7 is designed to elevate your riding experience to new heights.
Ideal for: Designed for riders who seek a spirited trail biking experience with the added advantage of pedal assist on demanding climbs. If you value premium components, a refined motor system, and a natural mountain biking feel, the Fuel EXe 9.7 is tailor-made for you.
Key Features:

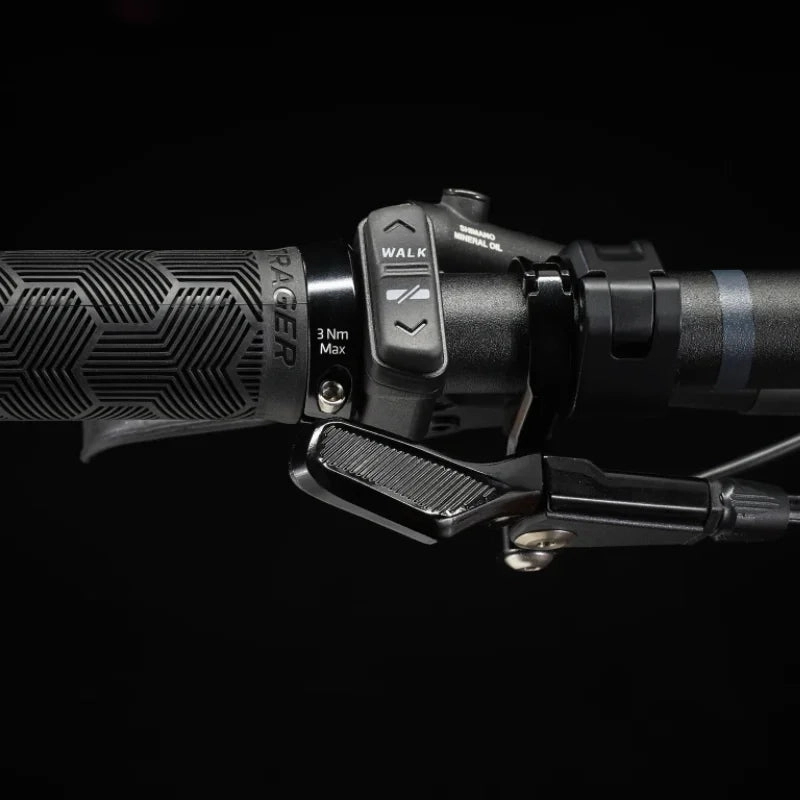

- OCLV Mountain Carbon frame housing a 360 Wh battery and TQ harmonic pin ring transmission with user-friendly features like smart charging port, integrated LED display, and discreet handlebar remote.
- A 150 mm FOX Rhythm 36 fork with Float EVOL air spring and GRIP damper, paired with a 140 mm FOX Performance Float X rear suspension.
- Tubeless Ready wheels and tires, along with a Shimano SLX and XT 12-speed drivetrain for seamless gear changes and enhanced performance.
What Sets It Apart: The Fuel EXe 9.7 delivers a blend of agility, power, and precision with its advanced TQ transmission technology, smooth suspension travel, and high-quality drivetrain components. This bike offers the perfect balance of natural trail riding sensations and efficient pedal assistance for a versatile and exhilarating riding experience.
Reasons to Embrace It:
- Enjoy a lively and responsive ride on descents, with added power for climbing that enhances your overall biking experience.
- The TQ transmission provides quiet operation and adjustable power levels, ensuring a seamless and natural ride feel tailored to your preferences.

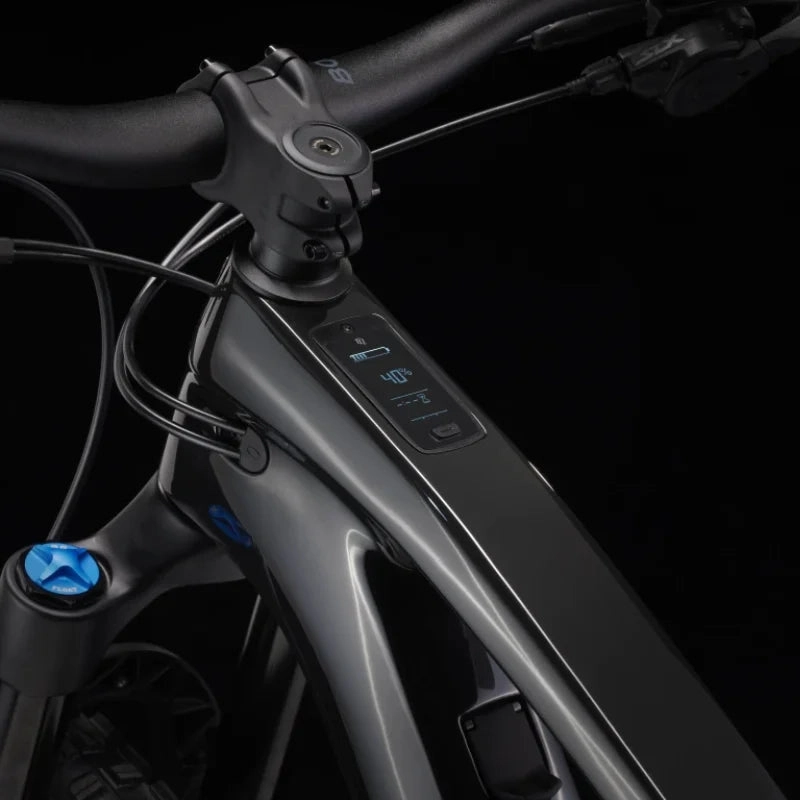

- Streamlined design elements like the smart charge port, integrated display, and discreet controls maintain the bike's sleek and traditional appearance.

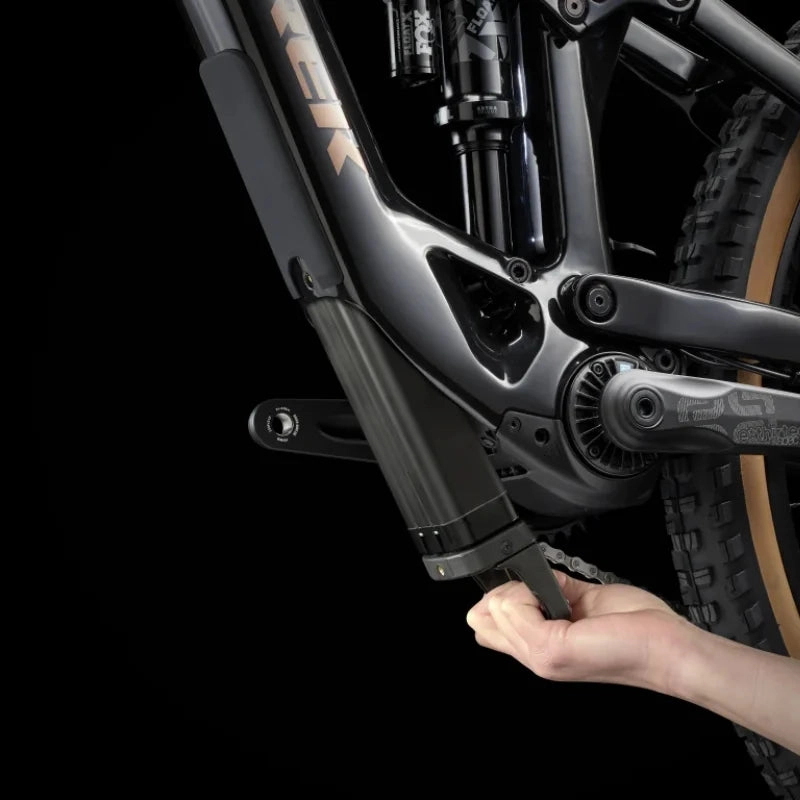

- Easily access and remove the battery using a standard Allen key, eliminating the need for specialized tools or complex procedures.
- Expand your riding capabilities with the option to add a range extender for extended adventures and increased riding range on demanding trails.
Unleash your biking potential with the Fuel EXe 9.7, a dynamic e-mountain bike that combines top-tier technology with exceptional ride quality, offering a thrilling and versatile experience on every trail.
Trek Fuel EXe 9.7 Specification
| Description | |
| Frame | OCLV Mountain Carbon, removable battery, internal routing, alloy rocker link, 34.9 mm seat tube, upper chain guide mount, 55 mm chainline, Mino Link, ABP, Boost148, UDH, 140 mm travel |
| Fork | Fox Rhythm 36, Float EVOL air spring, GRIP damper, tapered steerer, 44 mm offset, Boost110, 15 mm Kabolt axle, 150 mm travel |

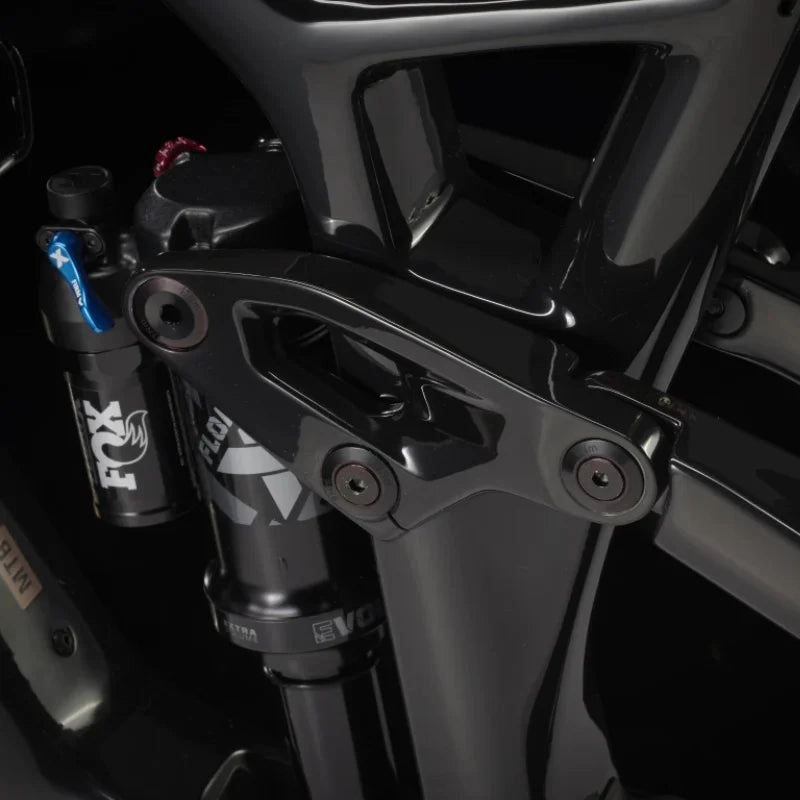

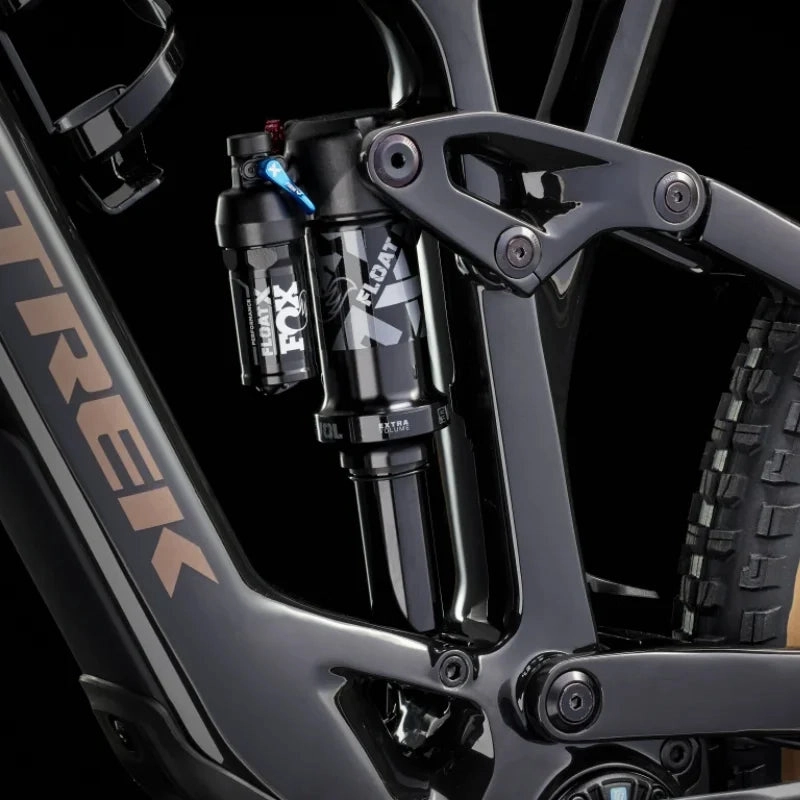

| Shock | Fox Performance Float X, 2-position damper, 205 mm x 60 mm |
| Wheel Front | Bontrager Line Comp 30, Tubeless Ready, 6-bolt, Boost110, 15 mm thru axle, 29" |
| Wheel Rear | Bontrager Line Comp 30, Tubeless Ready, Rapid Drive 108, 6-bolt, Boost148, 12 mm thru axle, 29" |
| Skewer Rear | Bontrager Switch thru-axle, removable lever |
| Tyre | Bontrager XR5 Team Issue, Tubeless Ready, Inner Strength casing, aramid bead, 60 tpi, 29x2.50" |
| Tyre Part | Bontrager TLR sealant, 180 ml/6 oz |
| Rim Strip | Bontrager TLR |
| Battery | TQ 360Wh |

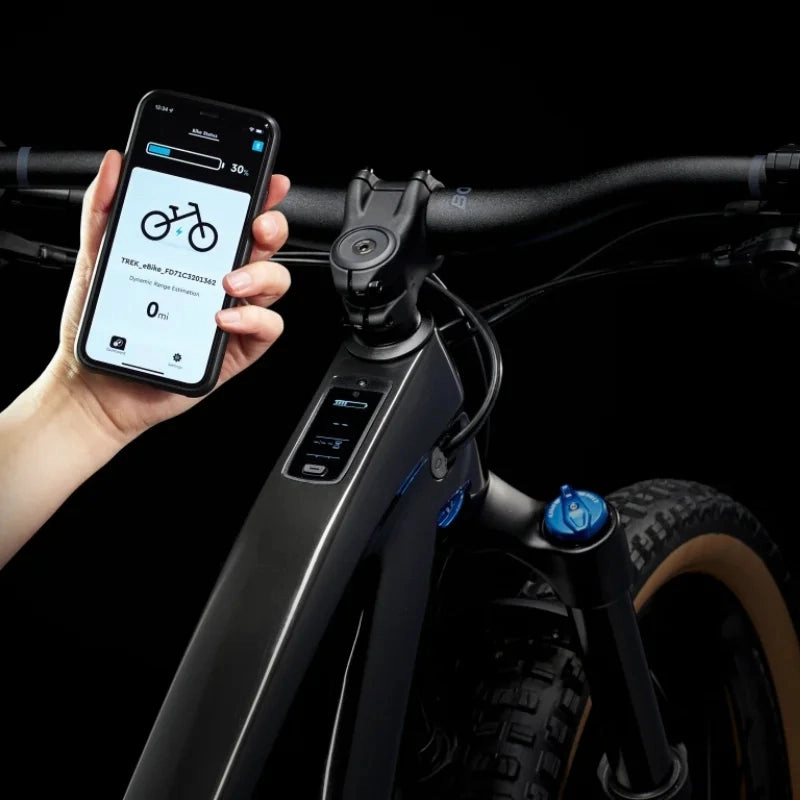

| Computer | TQ LED display with Bluetooth & ANT connectivity |
| Motor | TQ-HPR50, 50Nm, 250 watt maximum continuous rated power, 300-watt peak power |
| Shifter | Shimano SLX M7100, 12-speed |
| Rear Derailleur | Shimano XT M8100, long cage |
| Crank | E*thirteen E*spec Plus, 165 mm length |
| Chainring | E*thirteen E*spec, 32T alloy ring, 55 mm chainline |
| Cassette | Shimano SLX M7100, 10-51T, 12-speed |
| Chain | Shimano SLX M7100, 12-speed |
| Saddle | Bontrager Arvada, austenite rails, 138 mm width |
| Seatpost | Size: S, M, L, XL Size: S, M, L, XL |
| Seatpost | Size: S Size: M Size: L, XL |
| Handlebar | Bontrager Line, alloy, 35 mm, 27.5 mm rise, 780 mm width |
| Grips | Bontrager XR Trail Elite, nylon lock-on |
| Stem | Bontrager Elite, 35 mm, 0-degree, 45 mm length |
| Head Set | Integrated cartridge bearing, 1-1/8" top, 1.5" bottom |

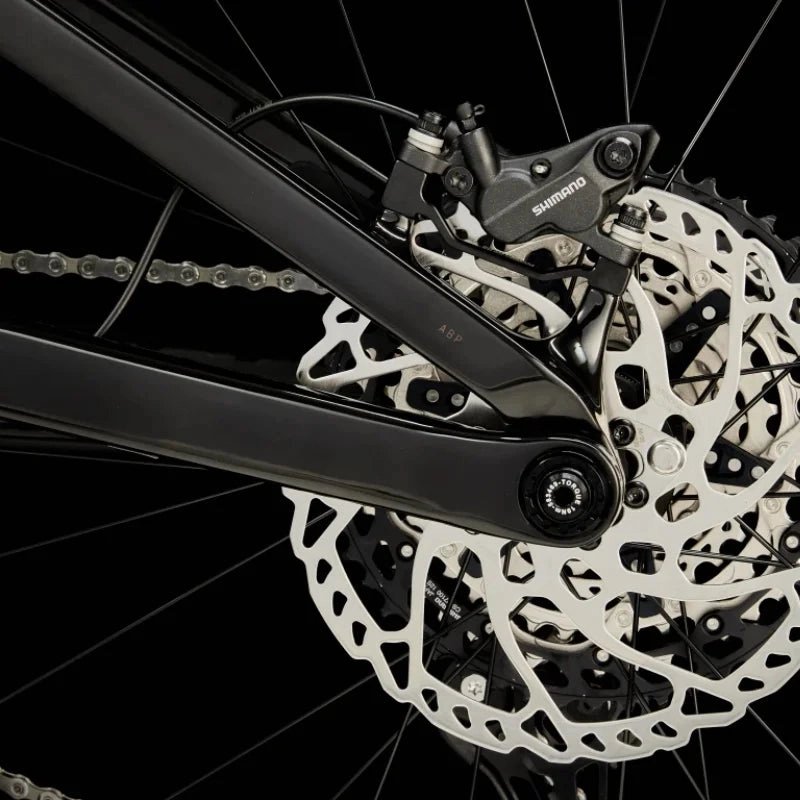

| Brake | Shimano 4-piston hydraulic disc, M6100 lever, M6120 calliper |
| Brake Rotor | Shimano RT66, 6-bolt, 203 mm |
| Brake Rotor | SRAM 6-bolt, 200 mm |

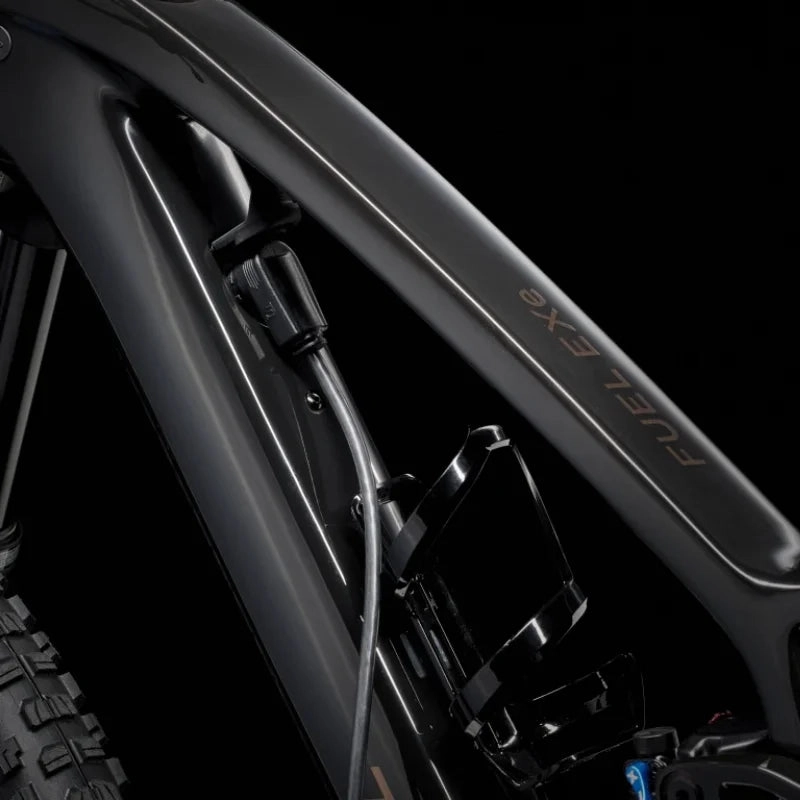

| Electronics | TQ 4A charger |
| Weight | M 19.15 kg/42.22 lb (with TLR sealant, no tubes) |
| Weight Limit | This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lb). |
Trek Fuel EXe 9.7 Sizing
| Size | Rider Height | Inseam |
| XS | 145 - 155 cm (4'9" - 5'1") | 69 - 73 cm (27" - 29") |
| S | 155 - 165 cm (5'1" - 5'5") | 74 - 78 cm (29" - 31") |
| M | 165 - 176 cm (5'5" -5'9") | 79 - 83 cm (31" - 33") |
| M/L | 173 - 180 cm (5'8" - 5'9") | 79 - 83 cm (31" - 33") |
| L | 177 - 188 cm (5'10" - 5'11") | 81 - 86 cm (32" - 34") |
| XL | 188 - 195 cm (6'2" - 6'5") | 89 - 91 cm (35" - 36") |
Trek Fuel EXe 9.7 Geometry
Sizing Table
| Frame Size Number | 15.5" | 15.5" | 17.5" | 17.5" | 19.5" | 19.5" | 21.5" | 21.5" |
| Frame Size Letter | S | S | M | M | L | L | XL | XL |
| Geometry Position | High | Low | High | Low | High | Low | High | Low |
| Wheel Size | 29" | 29" | 29" | 29" | 29" | 29" | 29" | 29" |
| Seat Tube | 38.0 | 38.0 | 41.0 | 41.0 | 43.5 | 43.5 | 47.0 | 47.0 |
| Seat Tube Angle | 69.3 | 68.8 | 69.8 | 69.3 | 70.8 | 70.3 | 71.3 | 70.8 |
| Effective Seat Tube Angle | 77.3 | 76.8 | 77.3 | 76.8 | 77.3 | 76.8 | 77.3 | 76.8 |
| Head Tube Length | 10.0 | 10.0 | 11.0 | 11.0 | 11.0 | 11.0 | 12.0 | 12.0 |
| Head Angle | 65.3 | 64.8 | 65.3 | 64.8 | 65.3 | 64.8 | 65.3 | 64.8 |
| Effective Top Tube | 57.2 | 57.3 | 59.9 | 60.0 | 62.9 | 63.0 | 65.6 | 65.8 |
| Bottom Bracket Height | 34.1 | 33.4 | 34.1 | 33.4 | 34.1 | 33.4 | 34.1 | 33.4 |
| Bottom Bracket Drop | 3.2 | 3.9 | 3.2 | 3.9 | 3.2 | 3.9 | 3.2 | 3.9 |
| Chainstay Length | 43.8 | 44.0 | 43.8 | 44.0 | 43.8 | 44.0 | 43.8 | 44.0c |
| Offset | 4.4 | 4.4 | 4.4 | 4.4 | 4.4 | 4.4 | 4.4 | 4.4 |
| Trail | 12.4 | 12.7 | 12.4 | 12.7 | 12.4 | 12.7 | 12.4 | 12.7 |
| Wheelbase | 118.7 | 118.8 | 121.6 | 121.7 | 124.6 | 124.7 | 127.6 | 127.6 |
| Standover | 73.2 | 72.6 | 73.3 | 72.7 | 73.9 | 73.3 | 75.9 | 75.3 |
| Frame Reach | 43.4 | 42.8 | 45.9 | 45.3 | 48.3 | 48.3 | 51.4 | 50.8 |
| Frame Stack | 61.6 | 62.0 | 62.5 | 62.9 | 62.5 | 62.9 | 63.4 | 63.8 |
